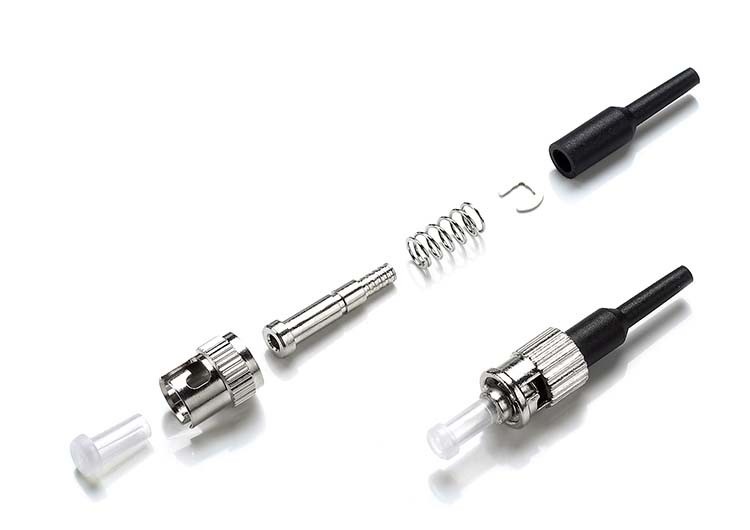

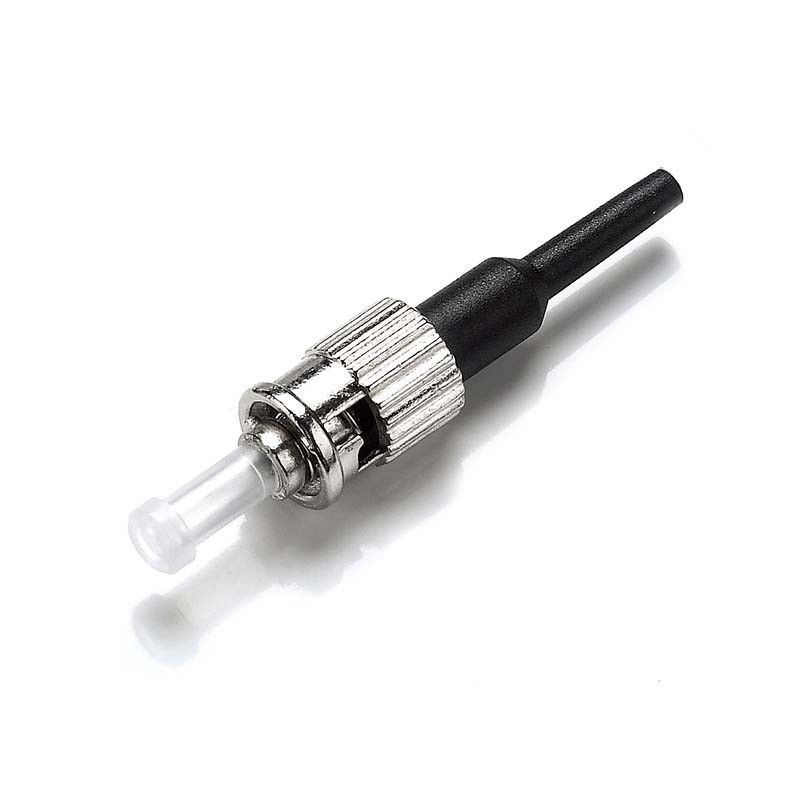

Our ST Connectors are commonly used in networking applications, for both short and long distance fiber optic applications. The ST Connector provides a versatile, reliable, and cost-effective fiber optic termination method. The design of the ST Connector enables it to be easily inserted and removed.
Features
- Low insertion loss
- Corrosion resistant body
- Precision mechanical dimension
- Meets Telecordia-GR-326-CORE specifications Ultra low back reflection
- One Piece with pre-domed ceramic ferrule is designed for easy assembly
- Fixed key and activity key can be selected
- For 900um buffer
- ROHS compliant
Applications
- Telecommunication
- LAN & WAN
- Broadband CATV
- Network FTTX.
Specifications
- Insertion loss: 0.20dB
- Return loss: >55dB (UPC)
- Boot size: 0.9mm
- Connectors type: ST Simplex
