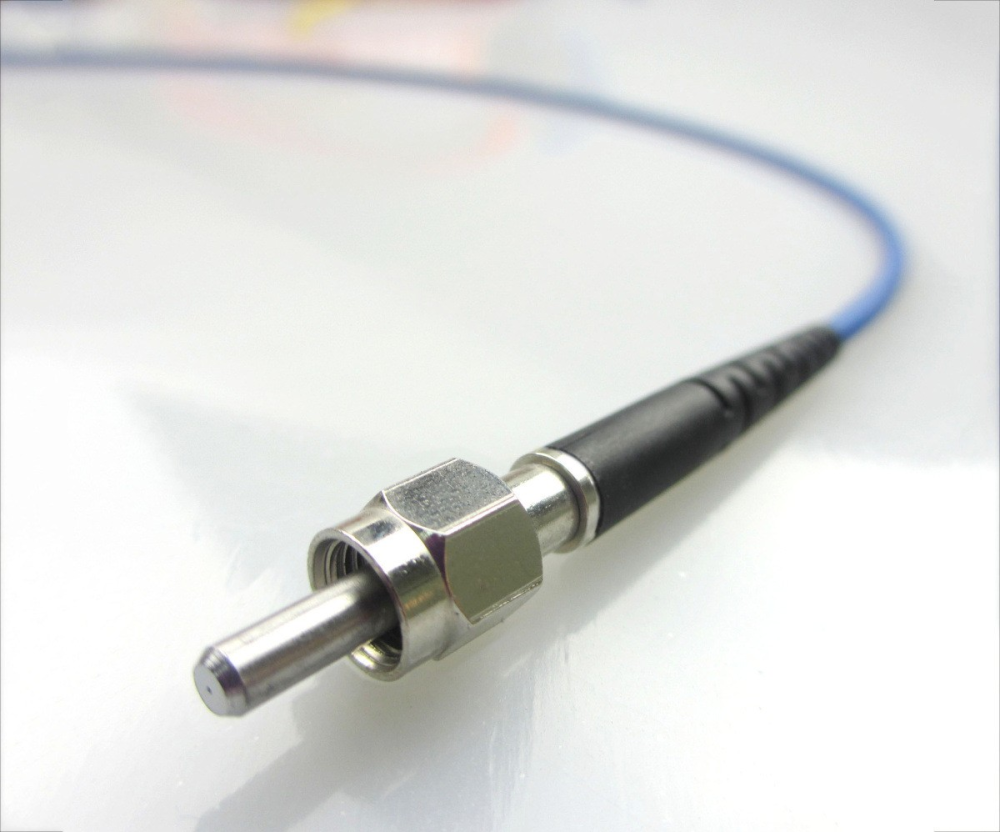

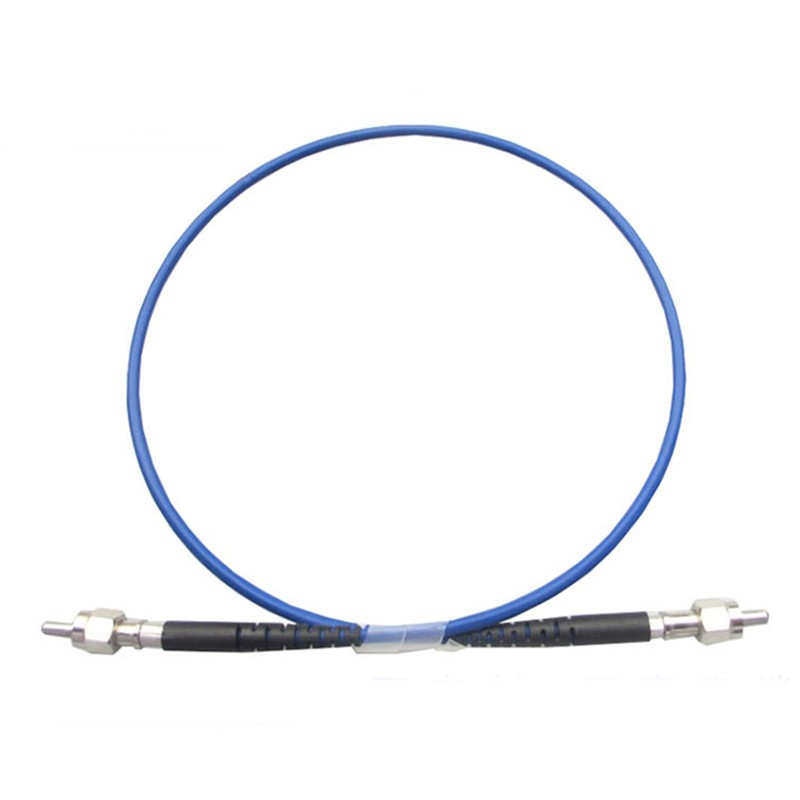

SMA905 produced with connectors made of ceramic ferrule or metal ferrule with flat end face. It assembled with precisely polished large core fiber, could meet power laser transfer or conmmunication signal transfer.
SMA Connector
| Housing Material | Boot | Color of Boot | Cable Diameter | End Face | Ferrule Material | Inner Diamter of Ferrule |
|
Zinc Alloy- Round Housing Copper Alloy- Hexangular Housing |
Long hollowed-out Boot | Black |
2.0mm 3.0mm |
Flat |
Ceramic Ferrule Metal Ferrule |
Customized |
Ultraviolet Light Optimized Silica Fibers (BGSU)

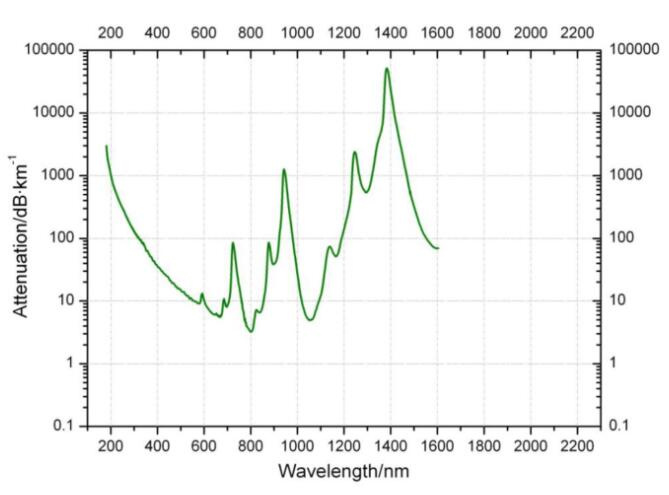

Spectral Range (200-1200nm)
1. Fine transmission performance at ultraviolet waveband, antiγ-ray at 800nm;
2. Applied in ultraviolet spectrum analysis, laser transmission, health detection, nuclear energy and semiconductor etc;
3. NA=0.22±0.02 (0.1to 0.28 on request);
CCDR: 1:1.04, 1:1.1, 1:1.2 (1:1.06, 1:1.15, 1:1.25, 1:1.4 on request)
| Core[μm](±2%) | 50 | 100 | 105 | 115 | 192 | 200 | 300 | 365 | 400 | 500 | 600 | 800 | 1000 |
| cladding[μm](±2%) | 125 | 110 | 125 | 125 | 200 | 220 | 330 | 400 | 440 | 550 | 660 | 880 | 1100 |
| coating material : Acrylate, Temperature range[℃]: -40-85 | |||||||||||||
| coating[μm](±3%) | 245 | 245 | 245 | 245 | 245 | 350 | 450 | 550 | 550 | 770 | 840 | 1100 | 1300 |
| coating material : Polymide, Temperature range[℃]: -65-300 | |||||||||||||
| coating[μm](±3%) | 145 | 125 | 145 | 145 | 145 | 245 | 355 | 425 | 480 | 575 | 710 | - | - |
Characteristics
- Suitable for ultravilet spectrum analysis and ultraviolet light transmission
- High Water peak of high -OH
- Clad with hight temperature resistance PI polyimide or AC acrylate
- Fluorine-dopped glass cladding quartz fiber
Applications
- Ultraviolet spectrum
- Medical device such as UV ultraviolet disinfector
- Chemical analytical instrument, such as pollution analysis instrument
Geometry & optical characteristics
- Multiple core diameters can be chosen 100/200/300/400/600/800/1000um
- The ratio of cladding to core is about 1:1.1
- Numerical aperture of NA is 0.22

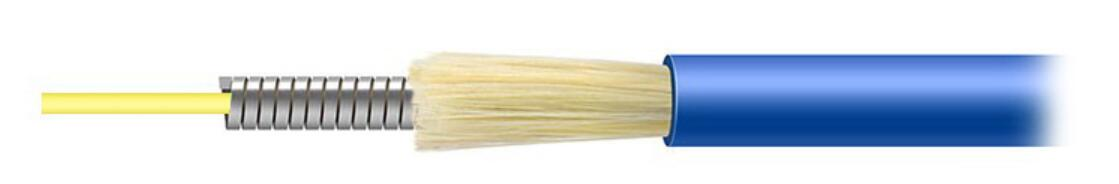

Constructed with an helical stainless steel tape over a buffered fiber surrounded by a layer of aramid and stainless steel mesh with an outer jacket.
