SC/APC Epoxy Connector with 2.0mm Boot

SKU:
0.0
0 Sold
$0.03 $0.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
0 in stock
  • SC/APC Epoxy Connector with 2.0mm Boot
  • SC/APC Epoxy Connector with 2.0mm Boot
  • SC/APC Epoxy Connector with 2.0mm Boot
  • SC/APC Epoxy Connector with 2.0mm Boot
  • SC/APC Epoxy Connector with 2.0mm Boot
  • SC/APC Epoxy Connector with 2.0mm Boot
  • SC/APC Epoxy Connector with 2.0mm Boot
  • SC/APC Epoxy Connector with 2.0mm Boot
1/1
  • SC/APC Epoxy Connector with 2.0mm Boot
  • SC/APC Epoxy Connector with 2.0mm Boot
  • SC/APC Epoxy Connector with 2.0mm Boot
  • SC/APC Epoxy Connector with 2.0mm Boot
  • Description

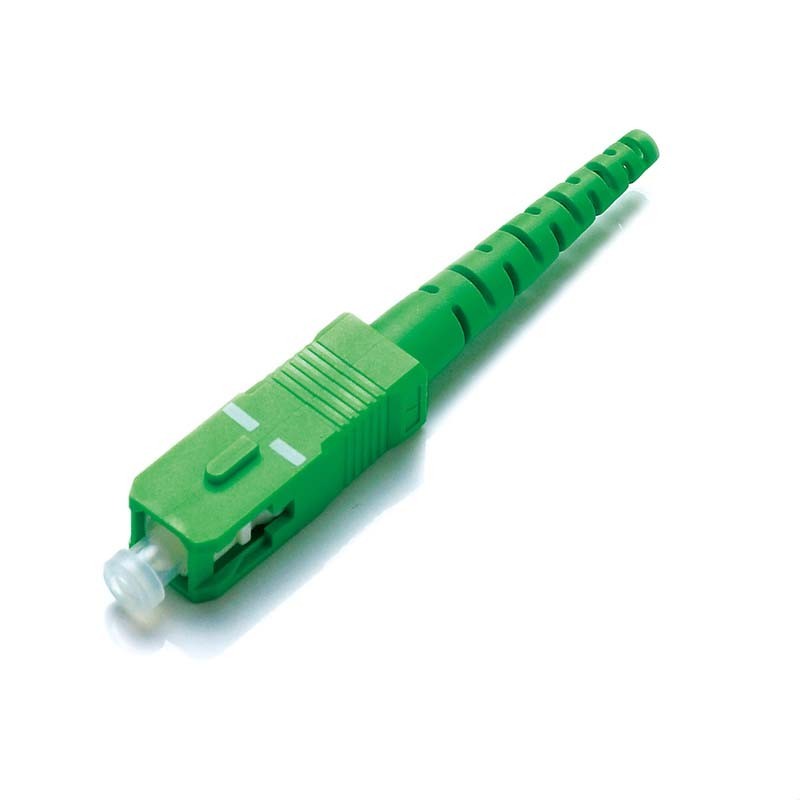

The SC fiber optic connector has a durable plastic body with a square front profile.  This fiber optic connector has a APC finish ferrule for minimum back reflection and can be ultra polished on a singlemode patchcord.

The SC fiber optic connector features a push-pull connection design for quick patching of fiber optic cables into rack or wall mounts. This compact fiber optic connector is ideal for telecommunications closets, premise wiring and other high density applications. These fiber optic SC Connectors can be clipped together to create duplex connections. SC stands for Subscriber Connector.


Features
- Low insertion loss
- Corrosion resistant body
- Precision mechanical dimension
- Meets Telecordia-GR-326-CORE specifications Ultra low back reflection

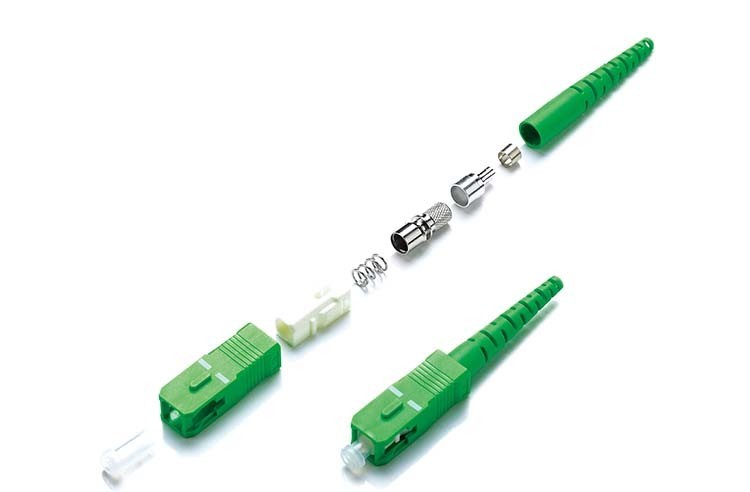

- One Piece with pre-domed ceramic ferrule is designed for easy assembly
- Fixed key and activity key can be selected
- For 2.0m cable
- ROHS compliant

Applications
- Telecommunication
- LAN & WAN
- Broadband CATV
- Network FTTX.

Specifications
- Insertion loss: 0.20dB
- Return loss: >65dB (APC)
- Boot size: 2.0mm
- Connectors type: SC Simplex
