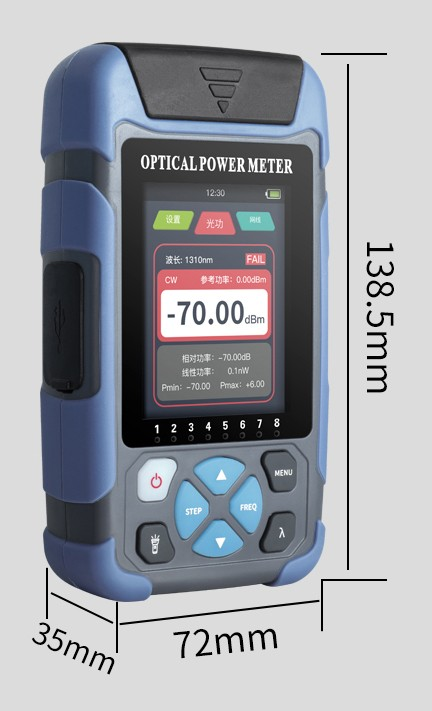

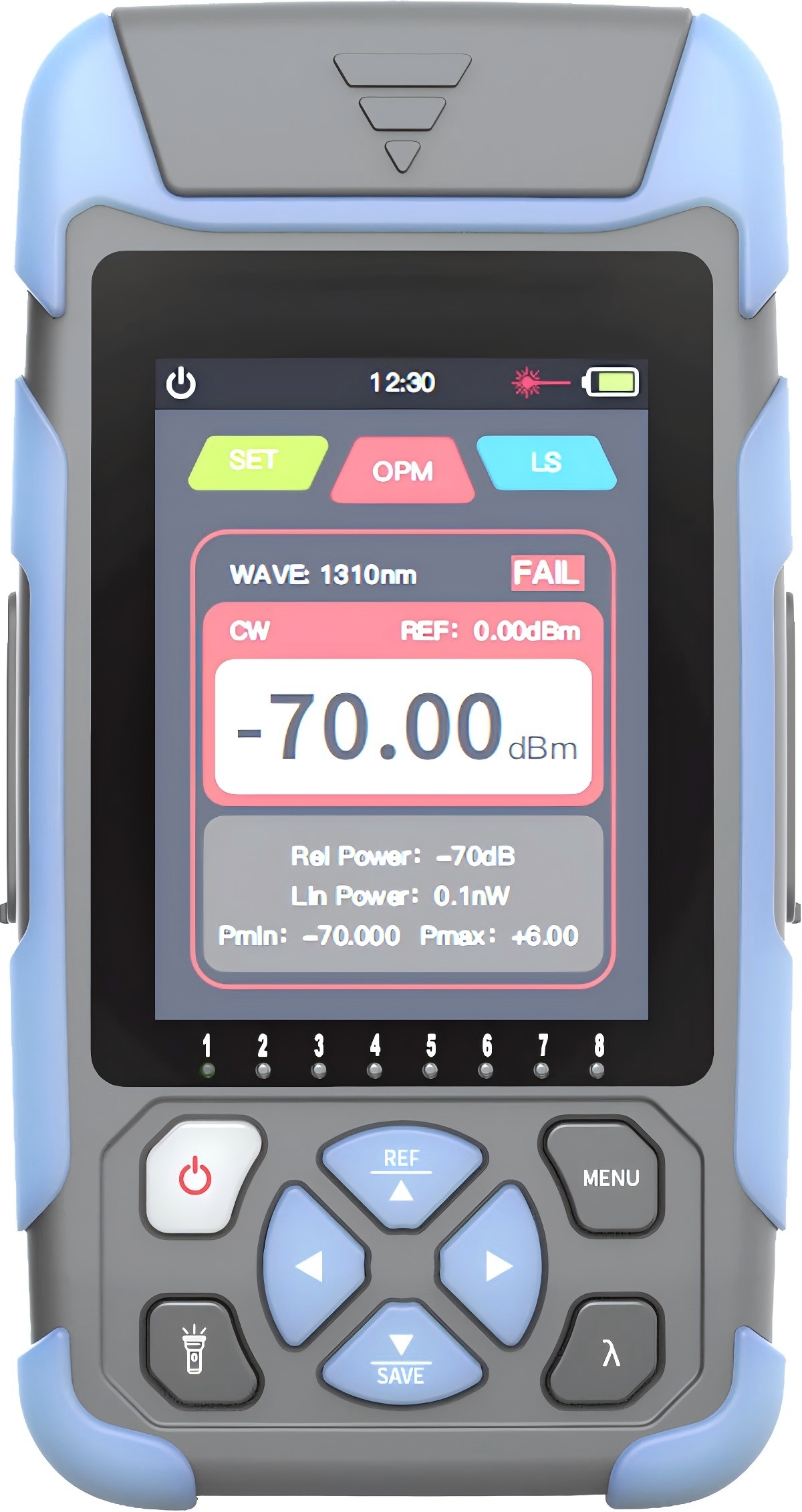

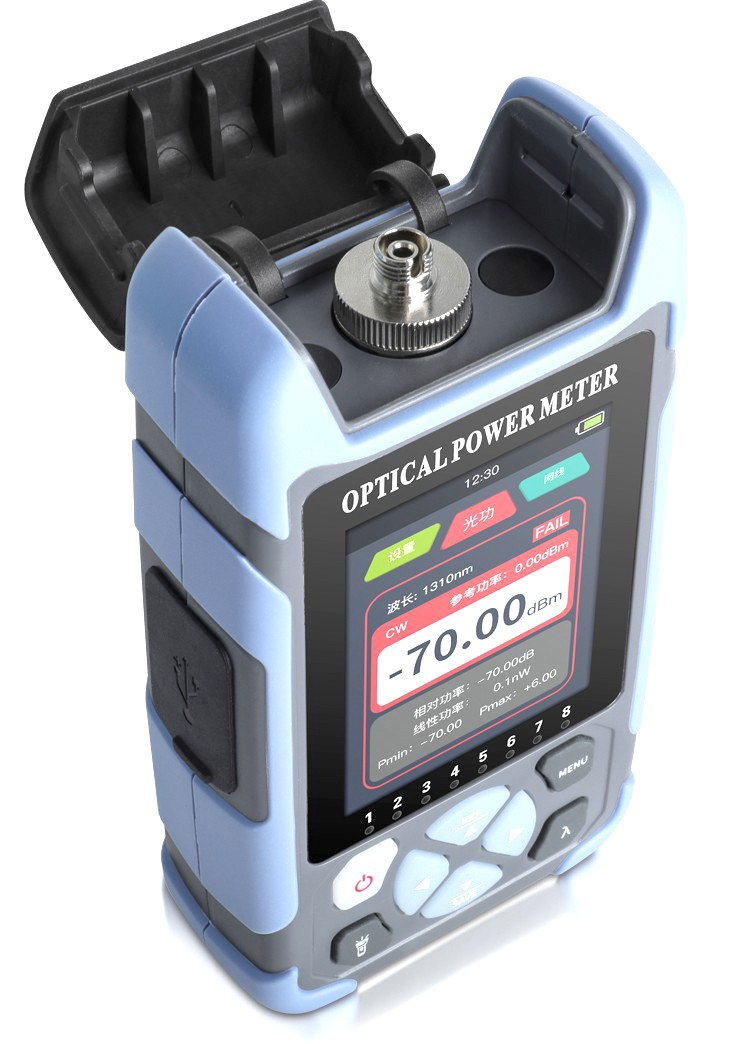

The 80H high performance optical multi meter is controlled by single chip microprocessor and displayed by true colorful LCD.
Its shape is novel, and the design meets the requirements of Human Engineering. The 80H adopts advanced thermoplastic molding technology which is beautiful and durable.
The 80H is with many optional functions, such as Optical Power Meter, Light Source, Visible Fault Location, Variable Optical Attenuator, RJ45 Sequence/Cable Tracking, Laser Ranging and flashlight. They are mainly used for continuous optical signal power measurement, optical fiber link loss test and optical fiber line on-off test.
The 80H widely used in optical cable construction and maintenance, optical fiber communication, optical cable sensing, Optical CATV and other fields.
Features
> 1mm Supper Large Photosensitive detector
> Save and Upload Testing Results
> Wide Testing Wavelength Range
> Automatic Frequency Identifification
> Automatic Wavelength Recognition
| Model | Function | Configuration |
| 80H-01 | Optical Power Meter | -70 to +10dBm |
| 80H-02 | Optical Power Meter | -50 to +26dBm |
| 80H-03 | Optical Power Meter + Visual Fault Locator | -70 to +10dBm, 10mW |
| 80H-04 | Optical Power Meter + Visual Fault Locator | -50 to +26dBm, 10mW |
| 80H-05 | Light Source | 1310/1550nm |
| 80H-06 | Light Source | 850/1300nm |
| 80H-07 | Light Source | 1310/1490/1550nm |
| 80H-08 | Light Source | 850/1300/1310/1550nm |
| 80H-09 | Light Source + Visual Fault Locator | 1310/1550nm, 10mW |
| 80H-10 | Light Source + Optical Power Meter | 1310/1550nm, -70 to +10dBm |
| 80H-11 | Light Source + Optical Power Meter | 1310/1550nm, -50 to +26dBm |
| 80H-12 | Light Source + Optical Power Meter + Visual Fault Locator | 1310/1550nm, -70 to +10dBm, 10mW |
| 80H-13 | Light Source + Optical Power Meter + Visual Fault Locator | 1310/1550nm, -50 to +26dBm, 10mW |
| 80H-14 | Variable Optical Attenuator | 0 to 30dB Attenuation |
| 80H-15 | Variable Optical Attenuator | 0 to 60dB Attenuation |
