FirstFiber OTDR
Model: FF90D28 Wavelength: 1310/1550nm
Dynamic Range: 28/26dB Testing Range: 3m to 130km
THE OTDR
1) With FC SC ST Connectors
2) With Calibrate Certificate & Test Report

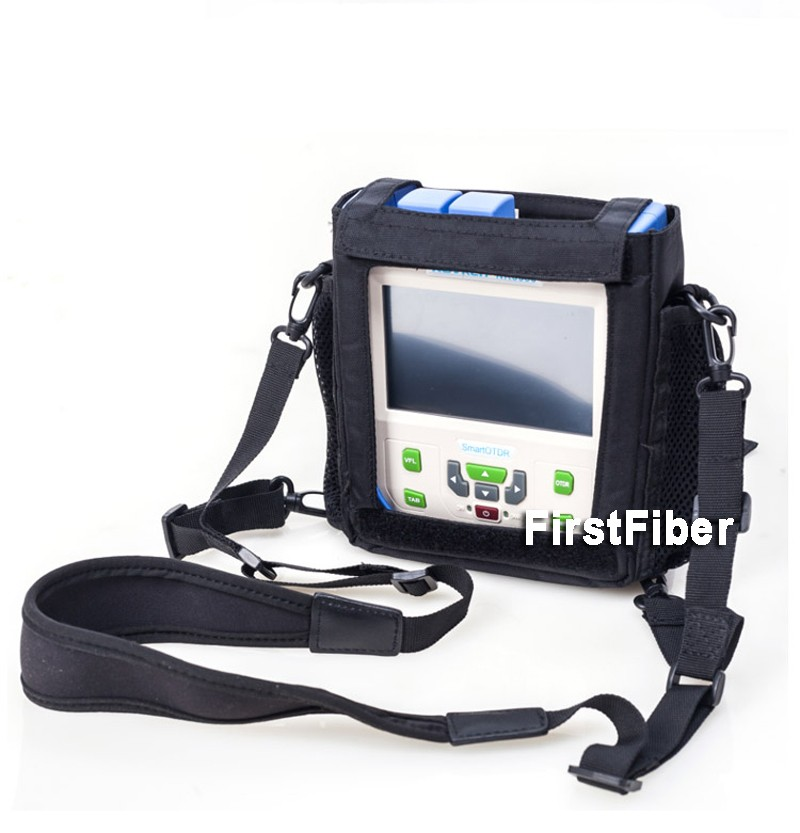

3) With Easy Carrying Bag
4) With Touch Screen & Touch Pen
5) With Visual Fault Locator Function
6) With PC Test Report Print Software
7) With Intelligent Events Map
EXTRA SERVICE (ALL FREE)
1) 8:00am~11:30pm (UTC+8) Online/Call Q & A
2) User Manual
3) Technical Question and Answers
4) Join our Fiber Optic OTDR Training Class
5) 18 month warranty
6) Remote Video Demo
CONTACT SALES ENGINEER 7/24 IF ANY QUESTIONS
sales(@)firstfiber.cn
Wechat/ Whatsapp: +86 18217747005
Skype ID: anker.yang8
Professional Equipment For FTTx & Metro Optical network Systems
As fiber optics plays more and more important role in modern telecommunication and CATV networks, the requirements to the construction, test and maintenance of fiber optics links also become more prominent.
FF90D is a unique product mainly designed for construction and maintenance of telecommunication and CATV networks. The FF90D OTDR can be widely used in engineering construction, maintenance test and emergency repair of all fiber optics related systems. Comparing with a regular OTDR, the FF90D OTDR is more compact in size and easier for field use.
FF90D OTDR handheld design, compact and lightweight, easy to carry. Event information through TFT color display and data storage capabilities. Through the USB interface, the test data can be uploaded to the PC, to facilitate the post-processing, archiving and printing.
Package includes
- 1xOTDR,
- 1x FC Connector
- 1x SC Connector
- 1x ST Connector,
- 1x User Manual
- 1x USB Cord
- 1x CD
- 1x OTDRviewer Software,
- 1x Power Charging Adapter,
- 1x Touch Screen,
- 1x Carrying Case,
- 1x Certificate of Calibrate
| General | |
| Dimension | 165x155x58mm, 0.85 kg (battery included) |

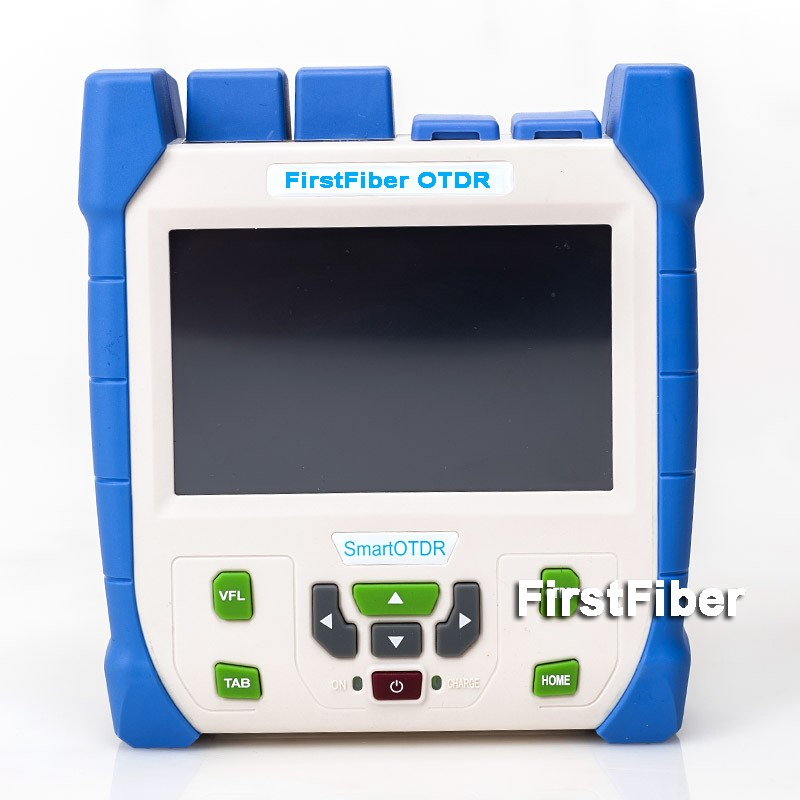

| Display | TFT-LCD Touch Screen |

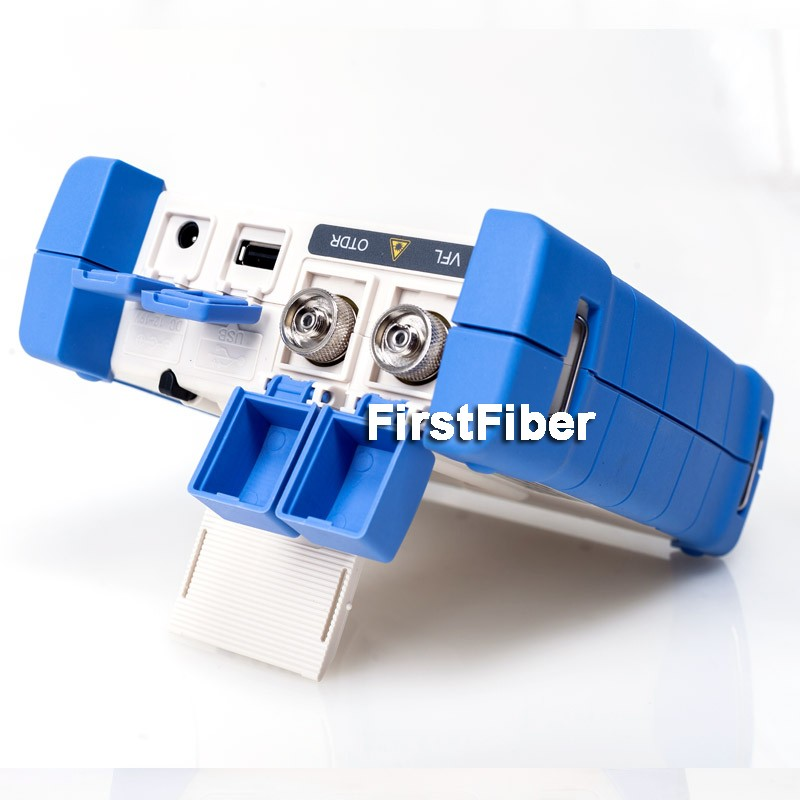

| Interface | 1×USB port, 1xOTDR port, 1xVFL port, 1xCharging Port |
| Power Supply | 18V to 20V(dc), 100V(ac) to 240V(ac), 50~60Hz |
| Battery | Lithium battery (with air traffic certification) |
| Operating Time: 8 hours①, Telcordia GR-196-CORE | |
| Charging time: <3 hours (power off) | |
| Power Saving | Backlight off: Disable/1 to 99minutes |
| Auto shutdown: Disable/1 to 99minutes | |
| Data Storage | Internal memory: 4GB (about 40,000 groups of curves) |
| Language | English in default |
| Environmental Conditions | Operating temperature and humidity: -10℃~+50℃, ≤95% (non-condensation) |
| Storage temperature and humidity | -20℃~+75℃, ≤95% (non-condensation) |
| Proof | IP65(IEC 60529) |
| Accessories | Standard: Main unit, power adapter, SC Adapter, ST Adapter, FC adapter, USB cord, |
| User guide, CD disk, carrying case, Touch Pen | |
| Optional: LC Adapter, Bare fiber adapter | |
| Test parameter | |
| Pulse Width | 10ns, 30ns, 50ns, 100ns, 275ns, 500ns, 1us, 5us, 10us |
| Distance Range | 1km, 2km, 4km, 8km, 15km, 30km, 60km, 90km, 120km, 160km |
| Sampling Resolution | Minimum 16cm |
| Sampling Point | Maximum 128,000 points |
| Linearity | ≤0.05dB/dB |
| Averaging Time | 5s, 15s, 30s, 1min, 2min, 3min |
| Auto Off | off, 10min, 30min, 60min |
| Distance Accuracy | ±(1m+measuring distance×3×10-5+sampling resolution ) ( excluding IOR uncertainty) |
| Screen Backlight | ≤100 |
| IOR Setting | 1.0000~2.0000, 0.0001 step |
| Units | km |
| OTDR Trace Format | Telcordia universal, SOR, issue 2(SR-4731) |
| OTDR: User selectable automatic or manual set-up | |
| Fiber Event Analysis | User defined PASS/FAIL thresholds: |
| -Reflective and non-reflective events: 0.01 to 1.99dB (0.01dB steps) | |
| -Reflective: 0.01 to 32dB (0.01dB steps) | |
| -Fiber end/break: 3 to 20dB (1dB steps) | |
| VFL | |
| Wavelength(±20nm) | 650nm |
| Power | 2mW,CLASSII B |
| Range | 10km |
| Launching Mode | CW/2Hz |
