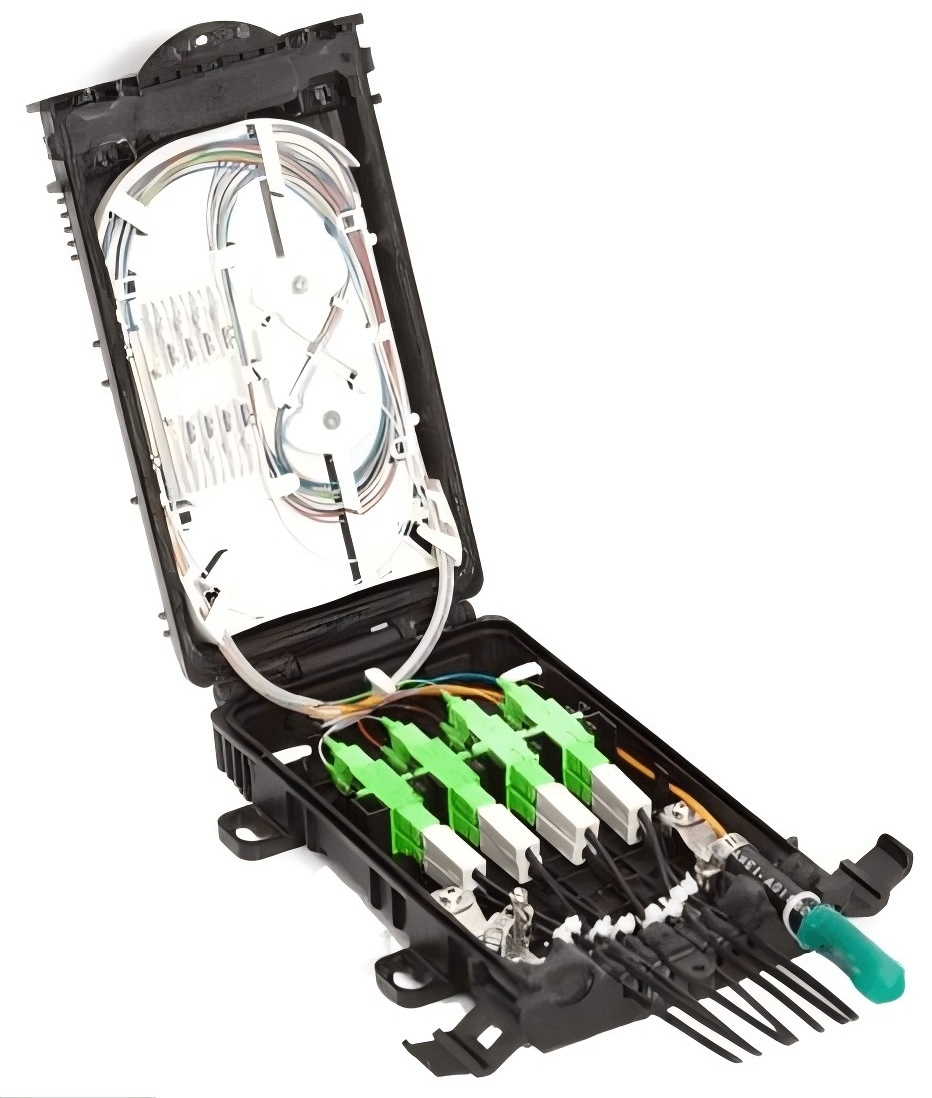

FF-FTB8J Fiber Drop Closure for Fiber Access Terminal

FF-FTB8J Fiber Drop Closure for Fiber Access Terminal is a butt type gel sealed fiber optic splicing and patching closures designed for fiber access point applications in the telecom outside plant network. FF-FTB8J Fiber Drop Closure for Fiber Access Terminal has 2 main cable ports and 8 drop cable ports. The closure accommodates up to 12 fusion splices (or 8 mechanical splices), two PLC splitters and 8 SC adapters. Sealing is achieved via built-in gel technology,which can make sealing be extremely convenient re-entry and re-sealing.

Features

• Gel sealing for excellent sealing and re-sealing performance
• High-quality engineering material of PP with good mechanical strength, sturdiness, and durability
• Make the Clamping for feeder cable and drop cable, fiber splicing, fixation, storage and distribution in one box

Standards

• UL 94, Test for Flammability of Plastic Materials for Parts in Devices and Appliances
• YD/T2150-2010 Optical fiber cable distribution box

 Specification

Packing:

• Packing: carton
• Storage temperature: -20°C~+65°C
• Storage humidity: 0%~95% (+30°C), no corrosive gases around
• Transportation: avoid collisions, falls, rain and snow poured directly attack and daylight exposure.



Installation:

• Wall mounting:

Drill 4 holes into the wall on the Wall Mounting Size (F*H): 136*104, place the expansion bolt

Φ7.5*40, place the box to match with the holes and use bolts to fasten it.

• Pole mounting:

Fix 1 set of the pole ring to the telecom pole, as below.
