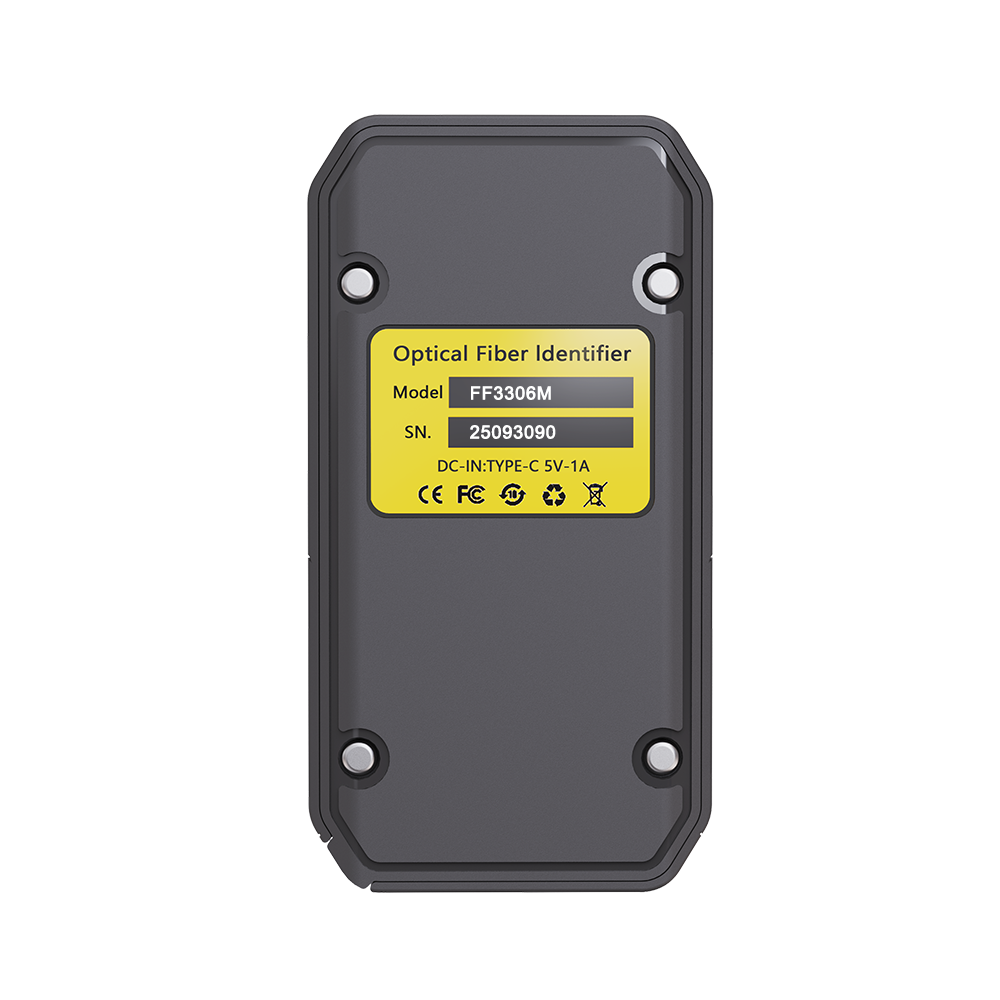

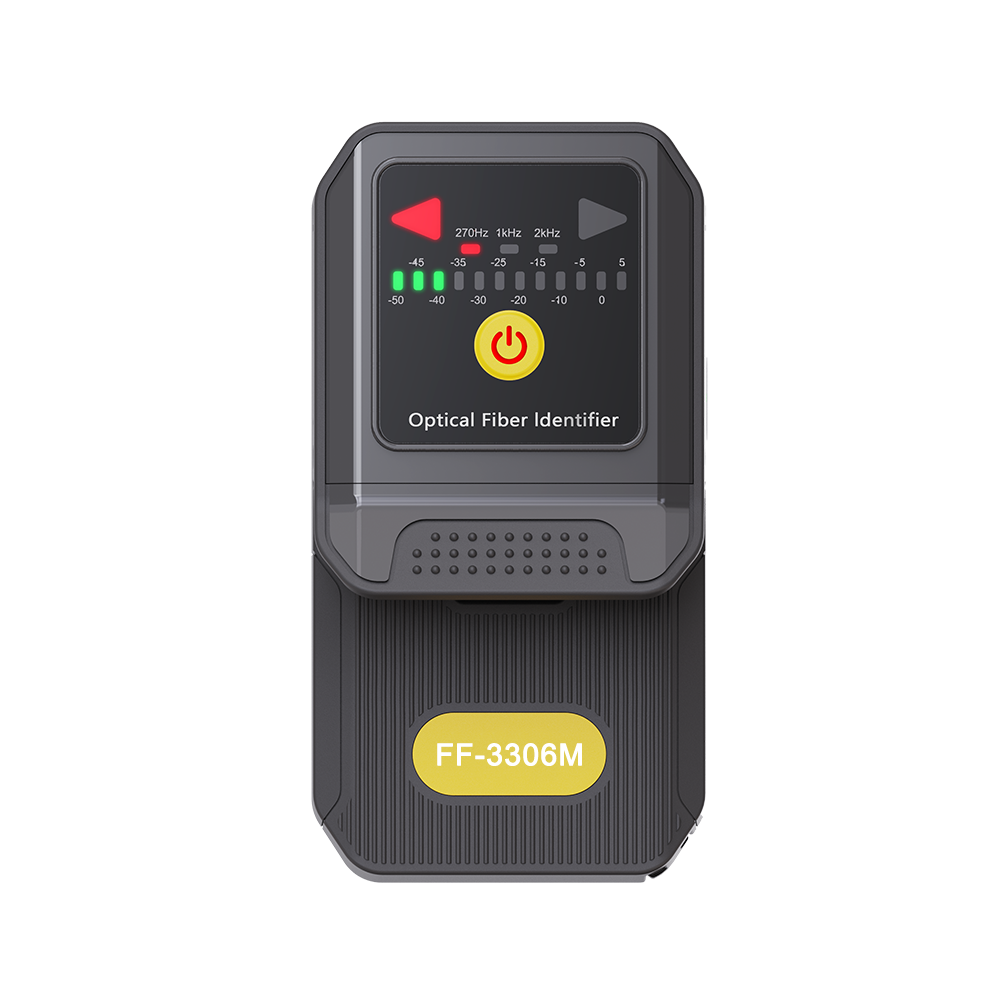

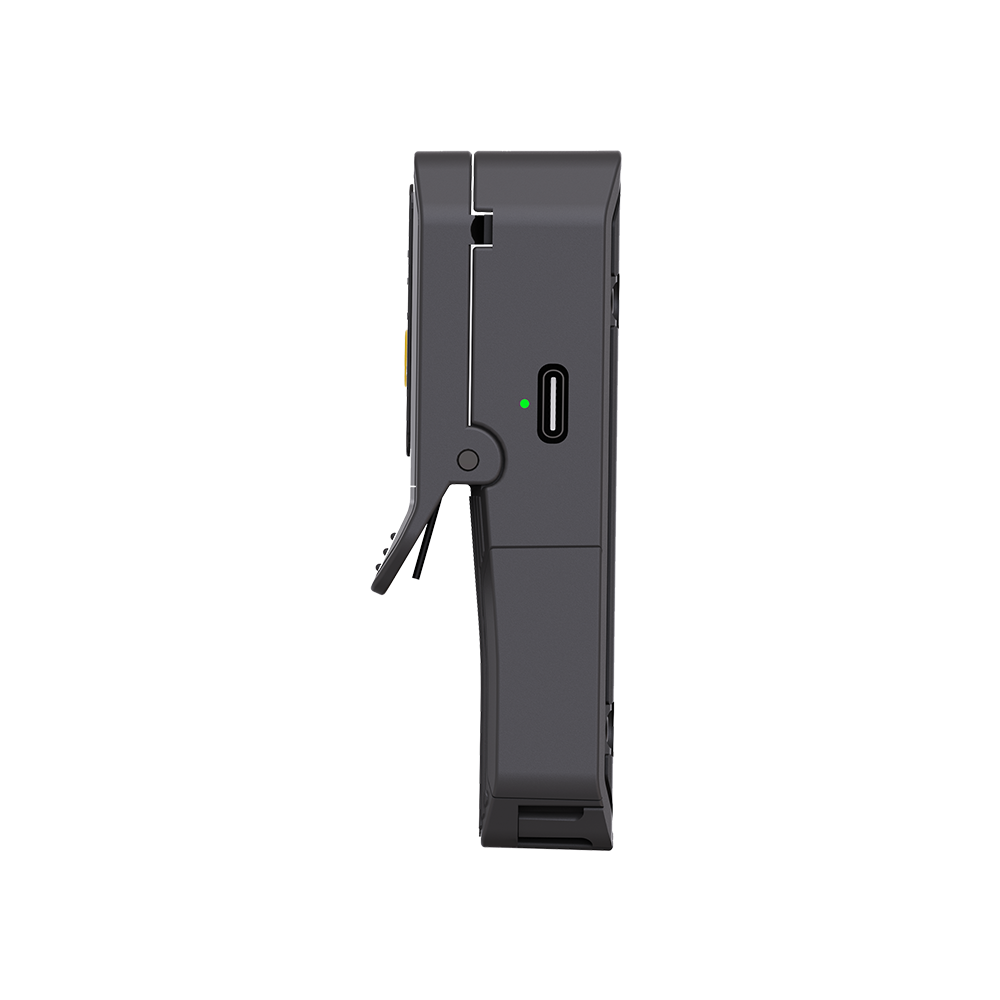

Name: FF-3306M Optical Fiber Identifier Micro
Brand: FirstFiber Technologies
Price: 99 USD
Availability: InStock

0.0

0 Sold

$99.00 ~~$109.00~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The FF-3306M Optical fiber identifier is used to detect signal direction and approximate power value at any position of SM and MM fiber link.
During fiber maintenance, installation and cabling, it is often necessary to find or identify a specific optical fiber without interrupting the working signals in fiber. The identifier is also used to identify the modulation (270Hz/ 1kHz/ 2kHz) signals that is injected into the optical fiber at one end.

Model	FF-3306M
Identify Wavelength Range	800 to 1700nm
Applicable Fiber Cable	0.25mm, 0.9mm, 2mm, 3mm
Detector Type	2x 1mm InGaAs
Modulation Frequency	CW, 270Hz, 1000Hz, 2000Hz, 3000Hz
Signal Direction Detection Range	-40 to +10dBm
Frequency Detection Range	> -20dBm
Insertion Loss	<1dB (Typical)
Battery	3.7V 500mAh Lithium
Battery Working Time	24H
Working Temperature	-10 to +50 oC
Storage Temperature	-40 to +70 oC
Size	82x43x29mm
