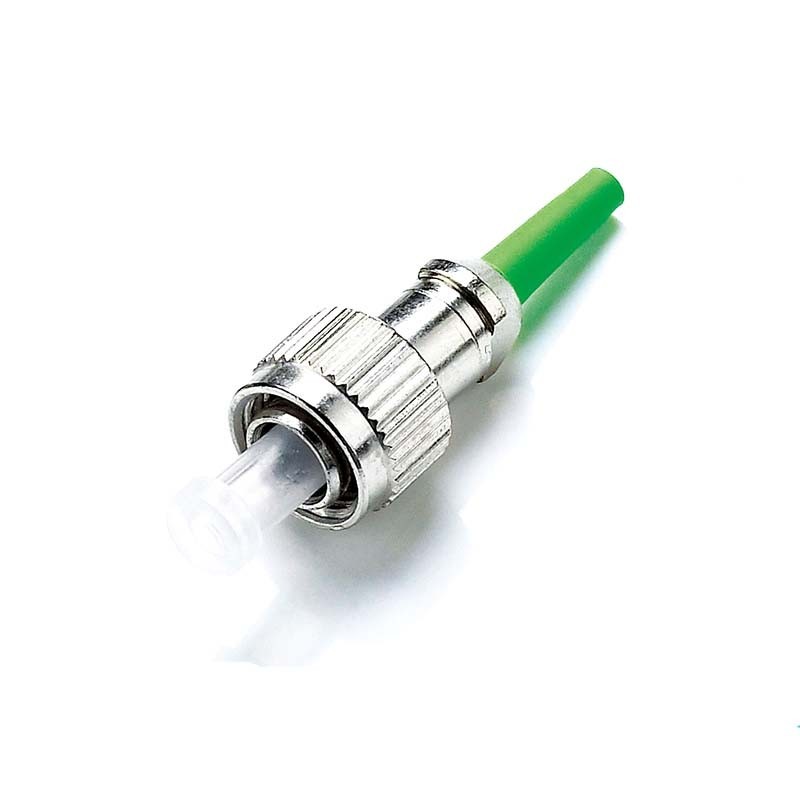

FC connectors are specifically designed for telecommunications applications and provide non-optical disconnect performance. Designed with threaded coupling for a durable connection. The ferrule has a 8 degree Angeled pre-radius PC finish ensuring low back reflection. The pre-radius angle ferrule alows these connectors to be either machine or hand polished.
Features
- Low insertion loss
- Corrosion resistant body
- Precision mechanical dimension
- Meets Telecordia-GR-326-CORE specifications Ultra low back reflection

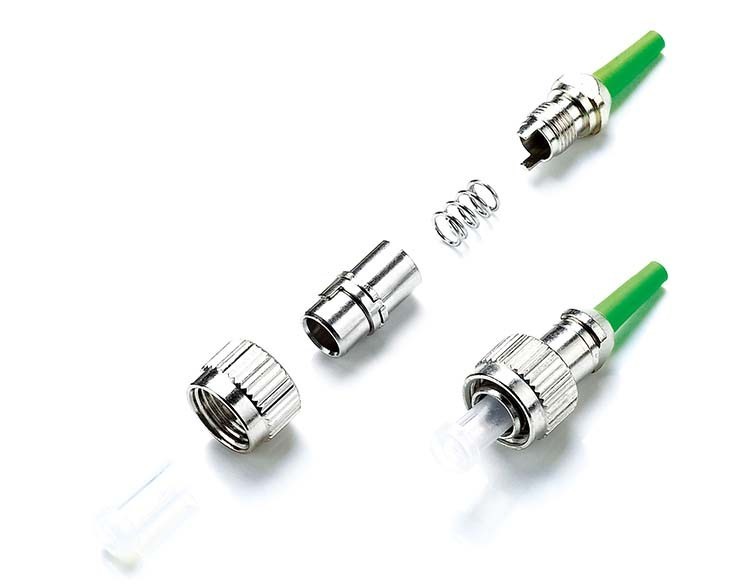

- One Piece with pre-domed ceramic ferrule is designed for easy assembly
- Fixed key and activity key can be selected
- For 900um buffer ROHS compliant
Applications
- Telecommunication
- LAN & WAN
- Broadband CATV
- Network FTTX.
Specifications
- Insertion loss: 0.20dB
- Return loss: >65dB (APC)
- Boot size: 0.9mm
- Connectors type: FC Simplex
