Home > Fiber Cleaning & Tools > Fiber Cleaver > FC-90T One Step Fiber Cleaver

1/1

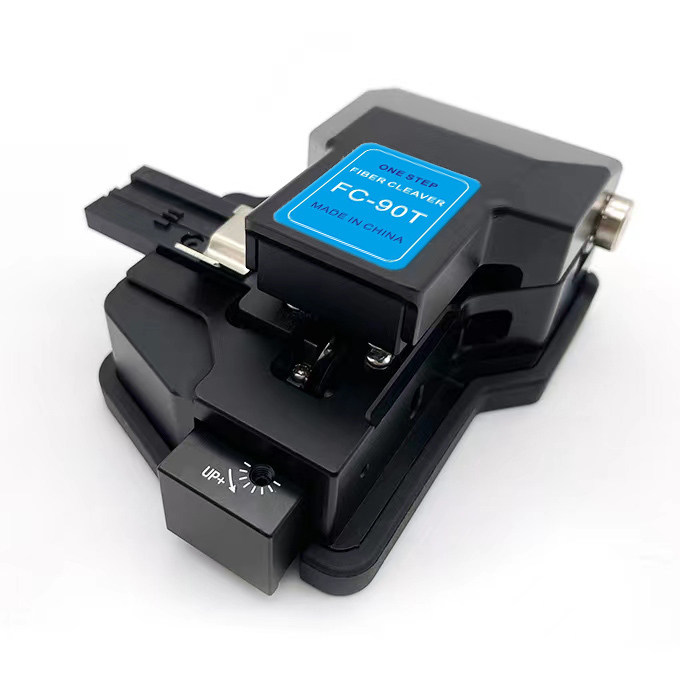

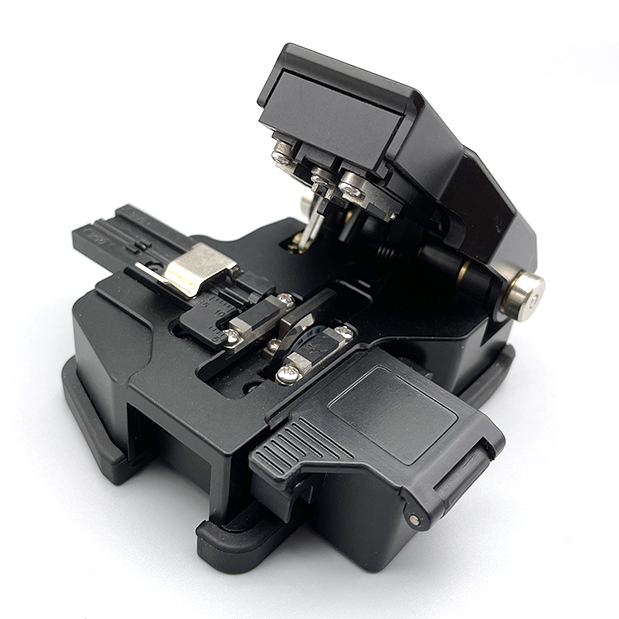

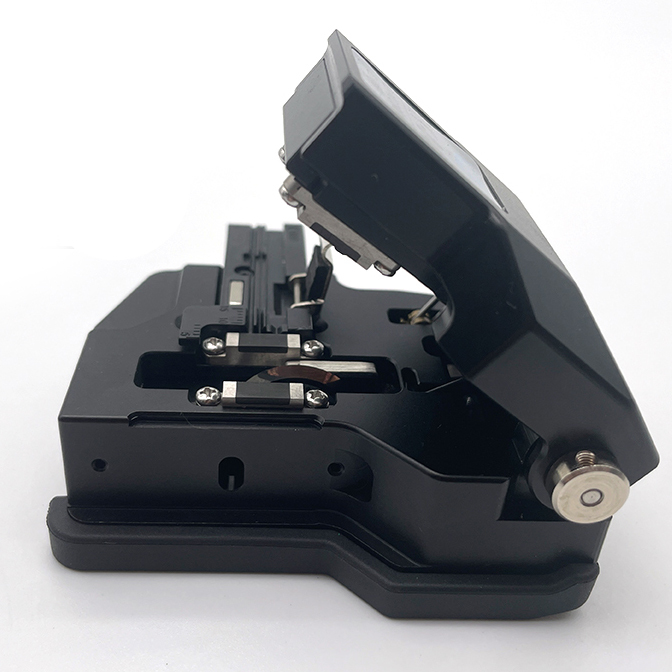

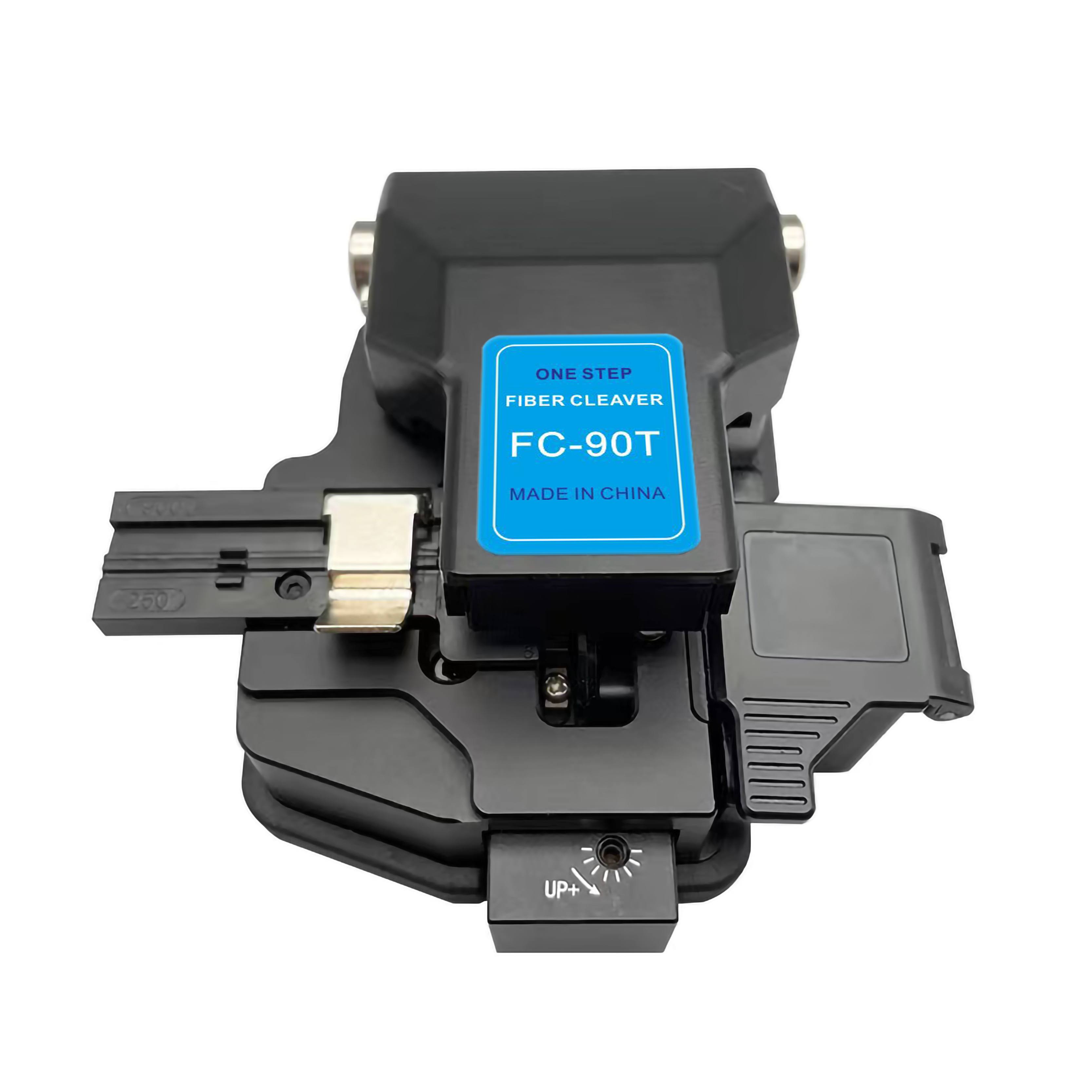

FC-90T One Step Fiber Cleaver

0.0

0 Sold

$135.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The FF-90T fiber cleaver is the most versatile tool available for optical fiber cleaving. The FF-90T is good for use in fusion splicing, field termination, or any other precision application. It has a simple cleaving operation that can be performed in the palm of the hand, which allows the user to take the cleaver to fiber in limited slack applications. The FF-90T can perform cleaves on single fibers (0.25 to 0.90) and up to 12 count ribbons.

Features
- Precision cleaves for fusion splicing, also ideal for preparing fiber for pre-poished connectors
- Utilizes an automatic anvil drop for fewer required steps and better cleave consistency
- Cleave Angle of 90 Degrees ± 0.5 Degrees
- Its 16-position blade provides approximately 78,000 Cleaves
- Standard 125/250um & 125/900um fibers

Applicable range	Single Core Fiber / Ribbon Fiber
Coating Diameter	φ0.25mm - φ0.9mm(Single) / 0.25mm(Ribbon)
Cladding Diameter	0.125mm
Cleave Length	5~30mm
Typical Cleaving Angle	<0.5°
Maximum Blade Life	48,000 times (3,000*26)
Number of Steps for Cleave	One Step
Scrap Collection	Included
Dimension	110mm(W)110mm(D)40mm(H)
Weight	320g
