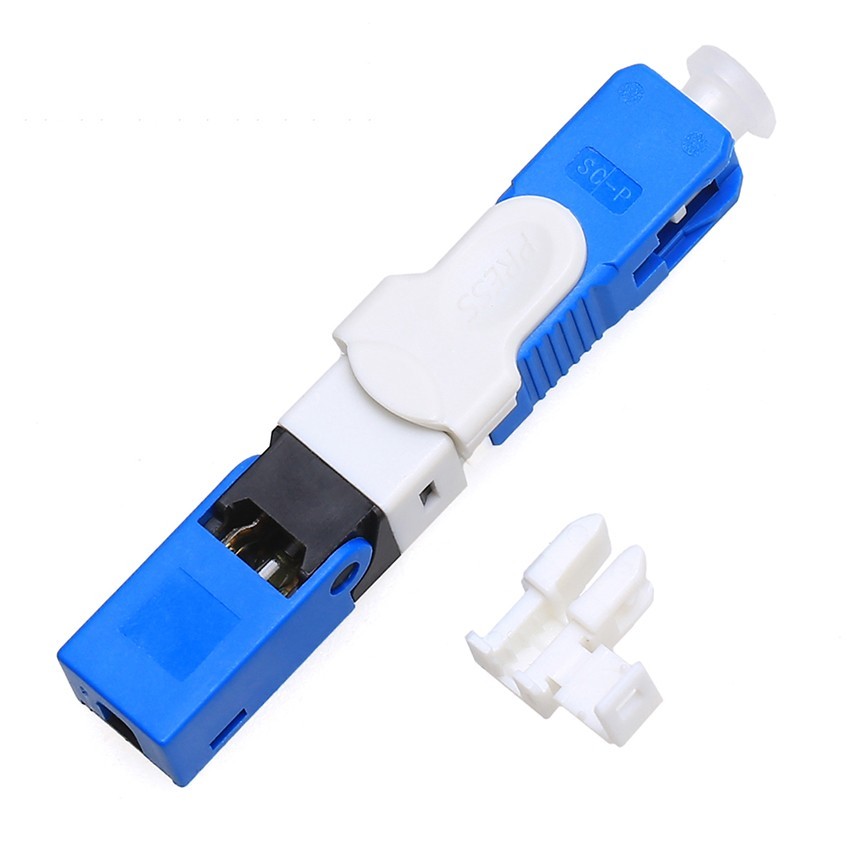

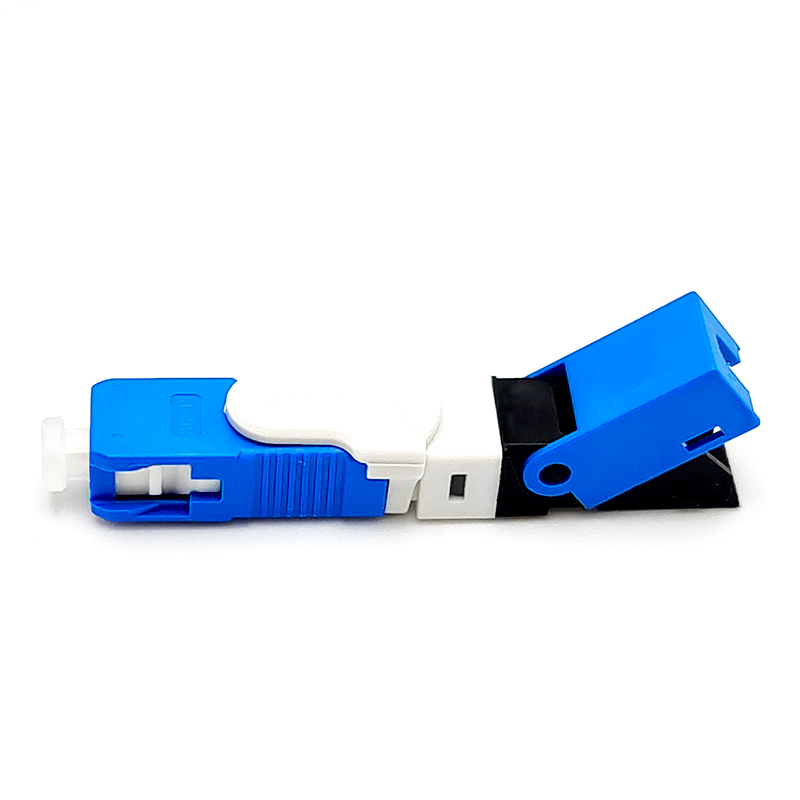

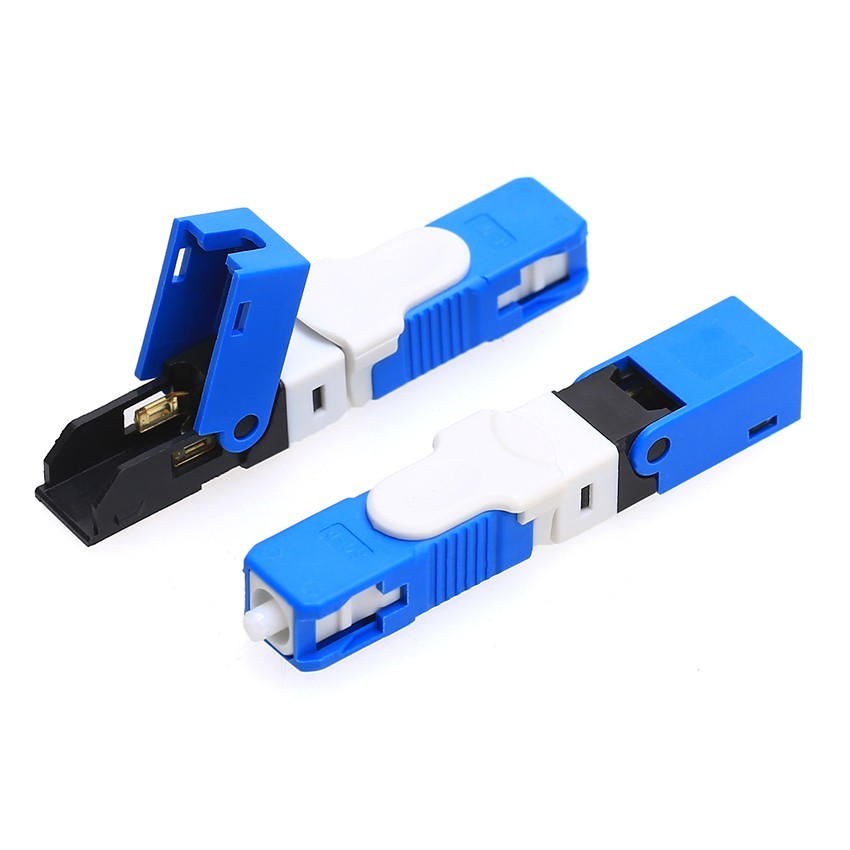

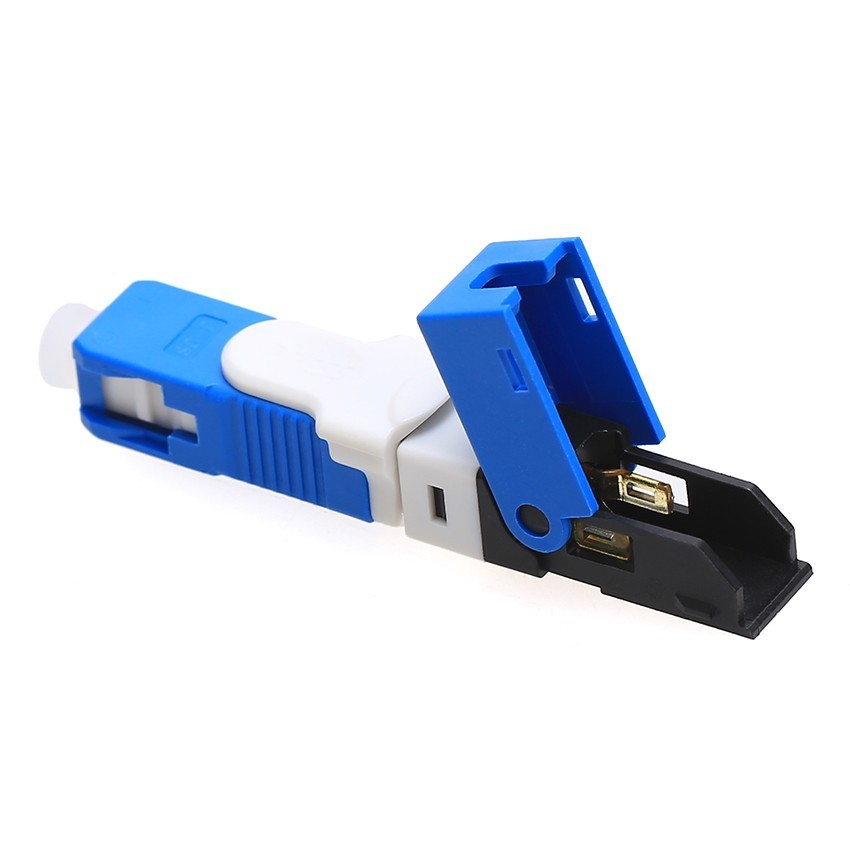

ESC25D-UPC SC/UPC Fast Connector for 2x3mm Drop Cable and 1.6x2mm Drop Cable FTTH Fiber Optic Field Assembly Connector
Features
1. FTTH project usable
2. For field fast installation
3. Typical Insert loss 0.3dB
4. For 2.0x3.0mm and 1.6x2.0mm FTTH butterfly Cable
5. Installation less than 1 minutes
6. Reliable and superior optical performance
7. Cable Tensile test complies with Telcordia GR-326-COR
8. Standard YD/T 2341.1-2011
| Applicable for | 2.0x3.0mm Drop Cable/ 1.6x2.0mm Drop Cable |
| Fiber Core/Cladding Diameter | 9/125um SM (G652D/G657A/G657B) |
| Fiber Coating Diameter | 250um |
| Operation Time | Less than 1 min |
| Typical Insertion Loss | 0.3dB |
| Max Insertion Loss | 0.5dB |
| Tensile Strength | >30N |
| Connector Length | 52mm |
| Return Loss | >50dB |

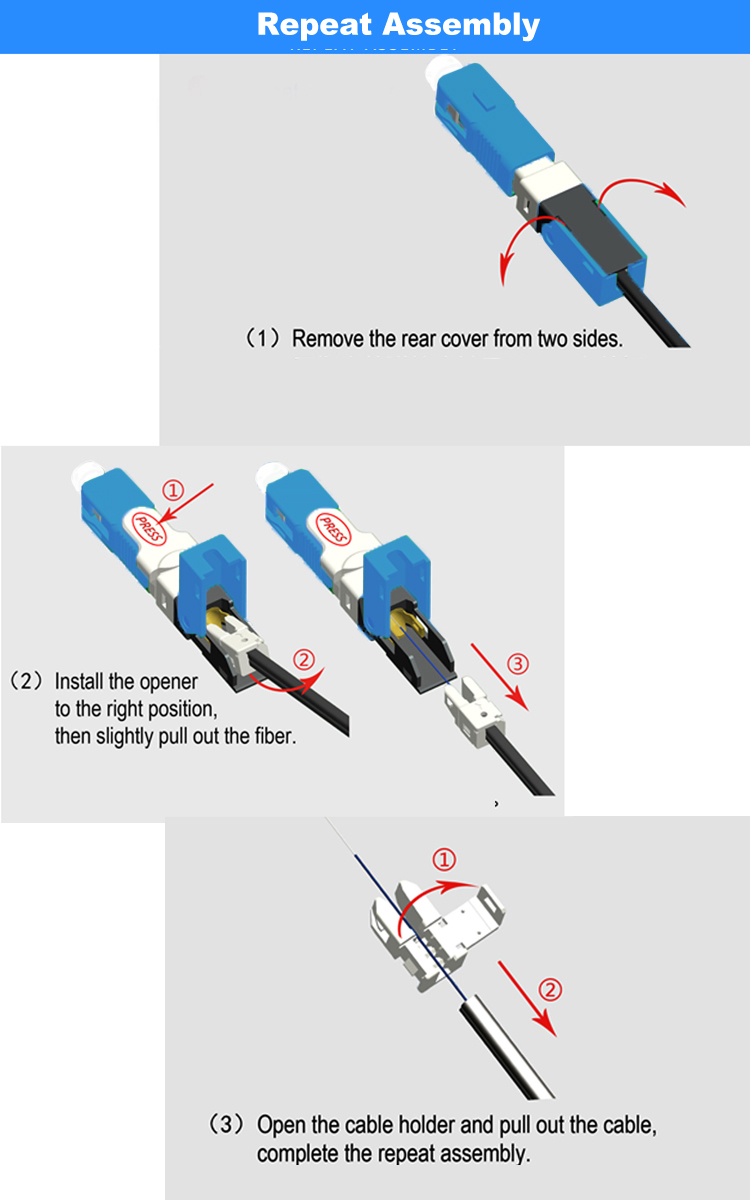

| Repeat Assemble | >10 Times |
| Working Temperature | -40 to +85 Celsius degree |

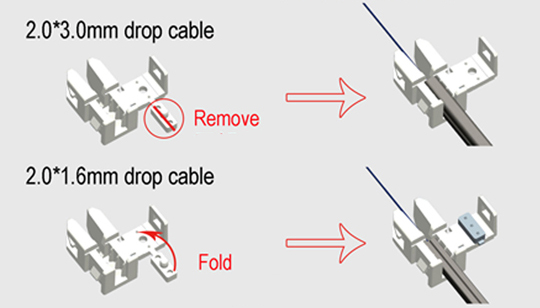

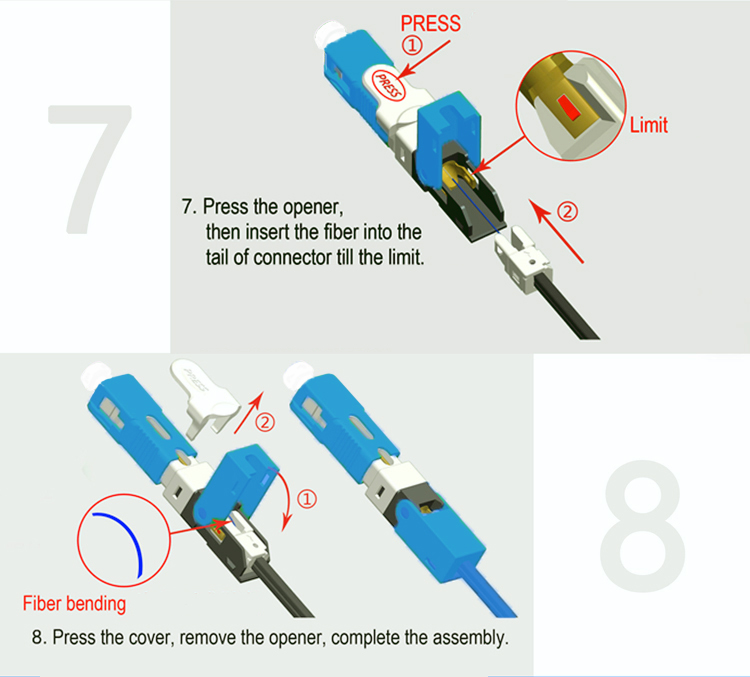

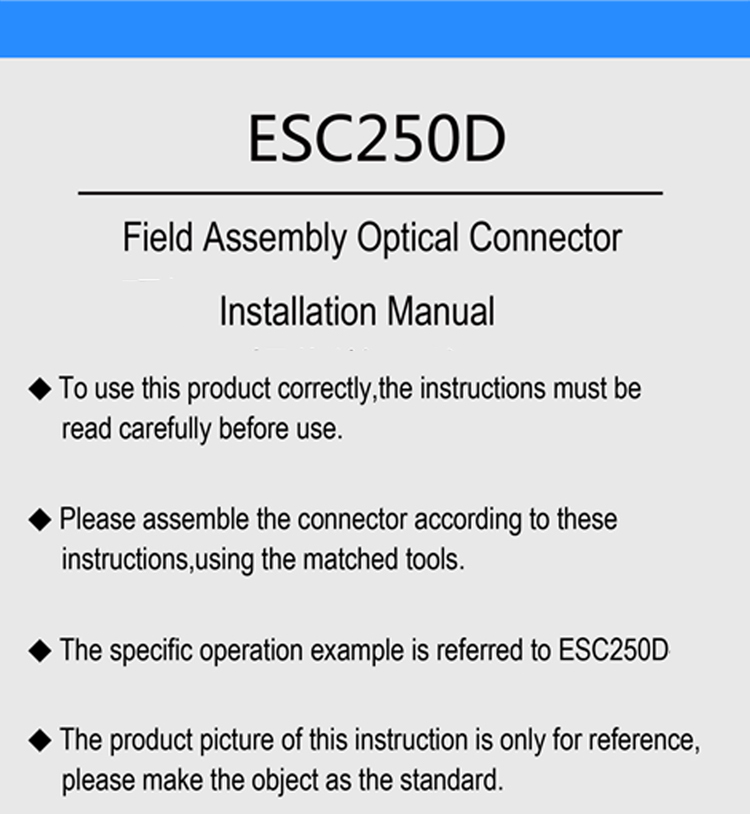

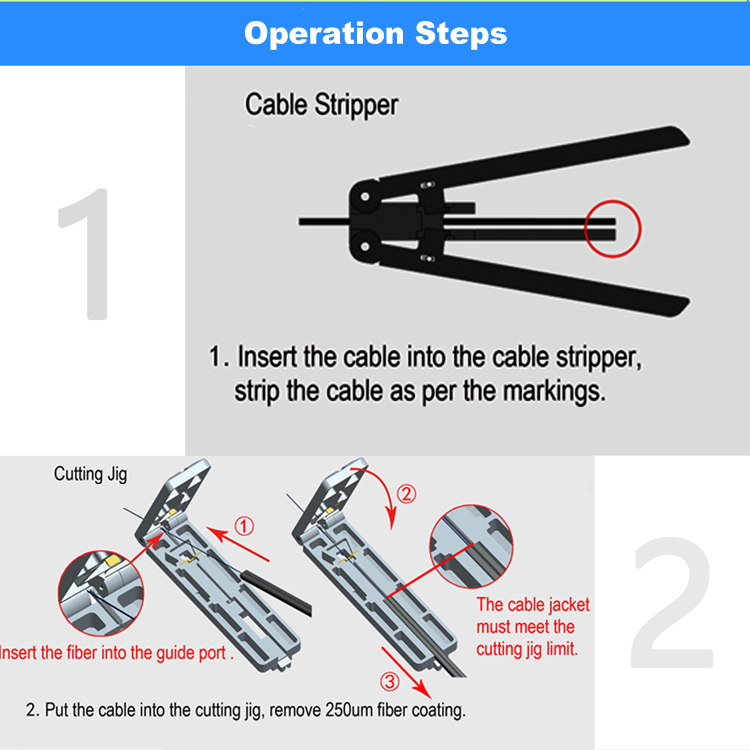

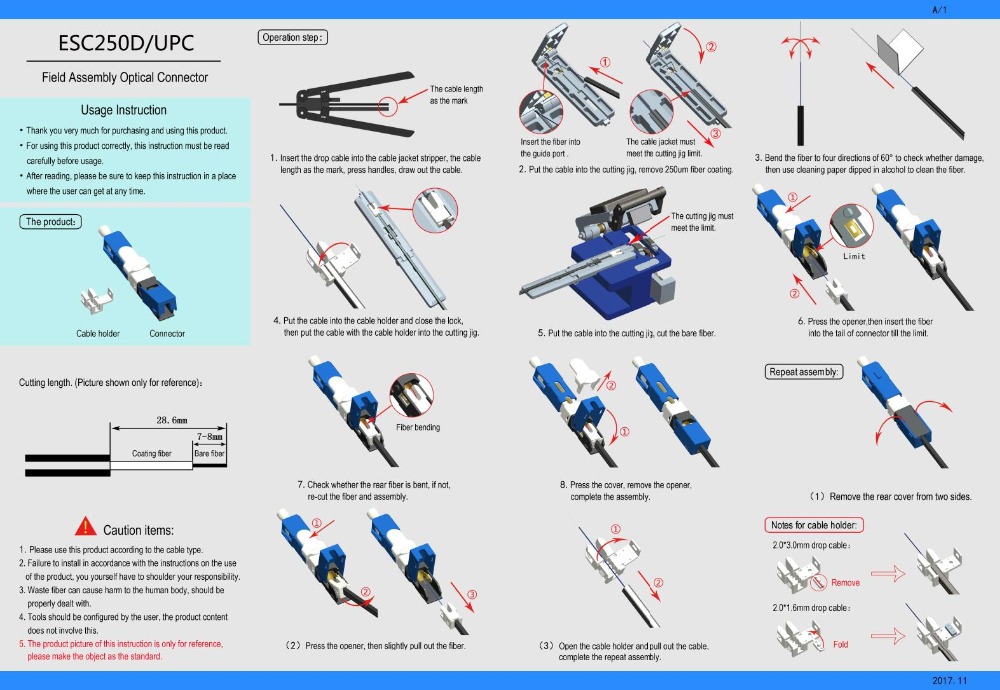

How to fit on both 2.0x3.0mm and 1.6x2.0mm cable

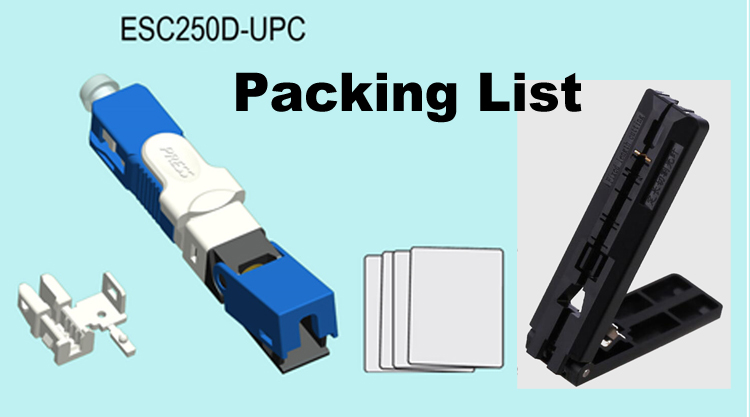

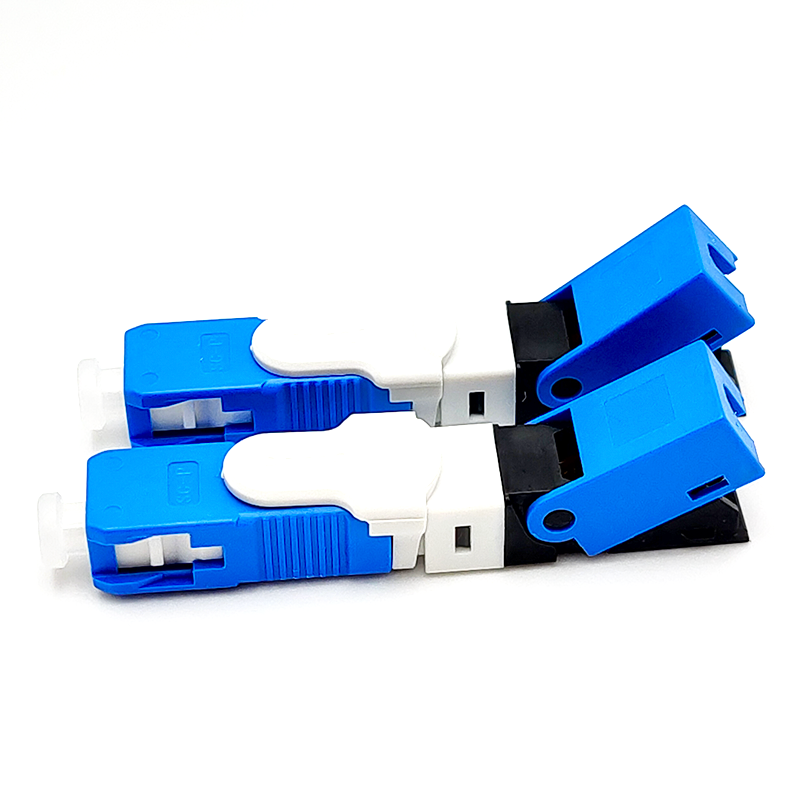

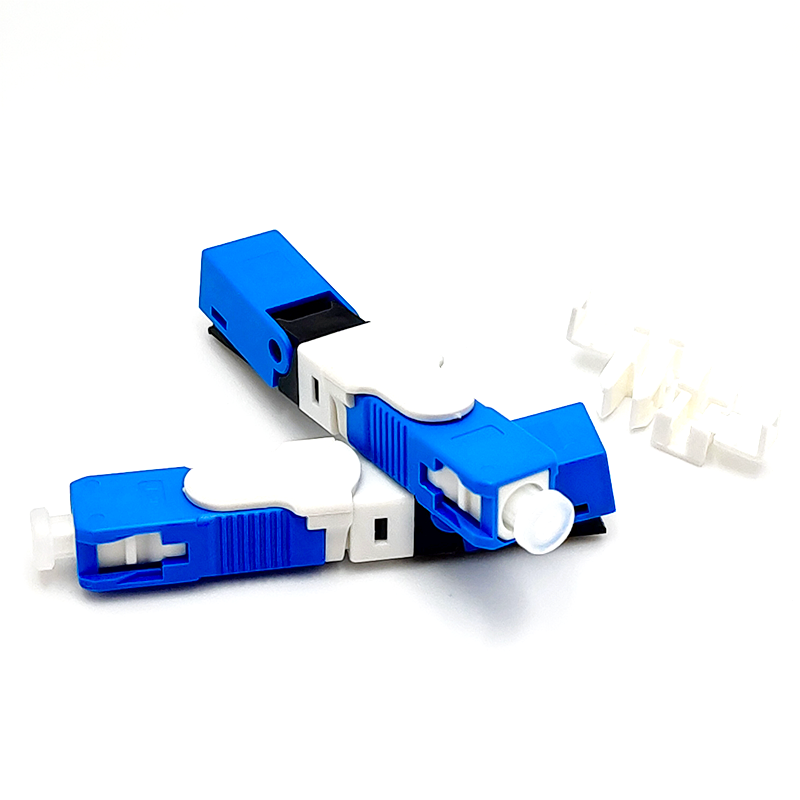

You will get all items on the picture
