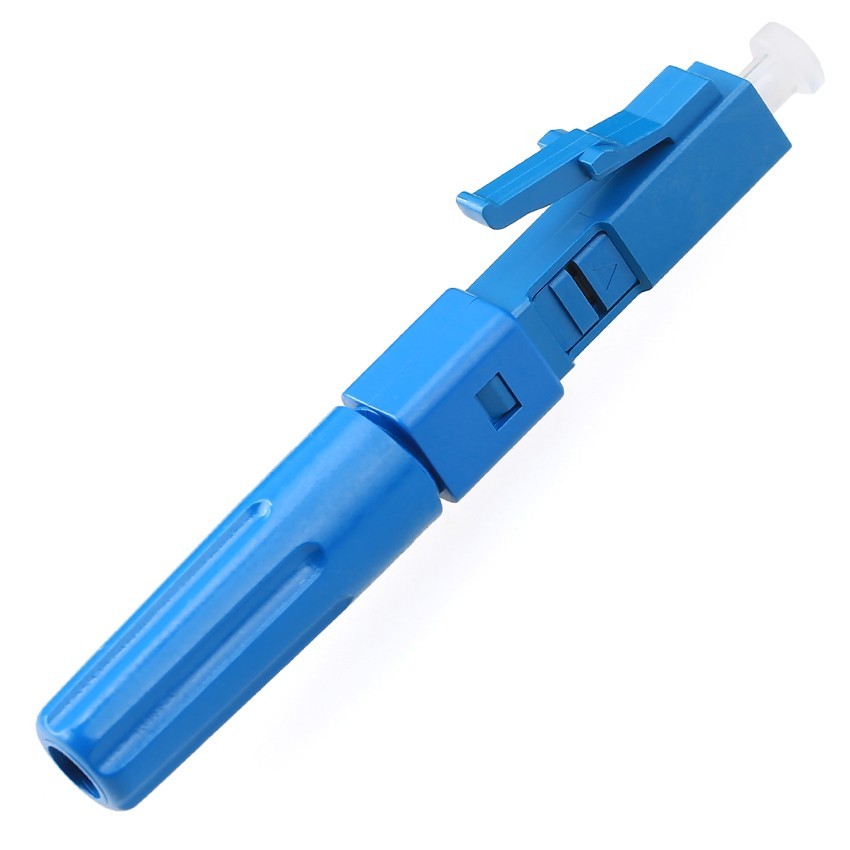

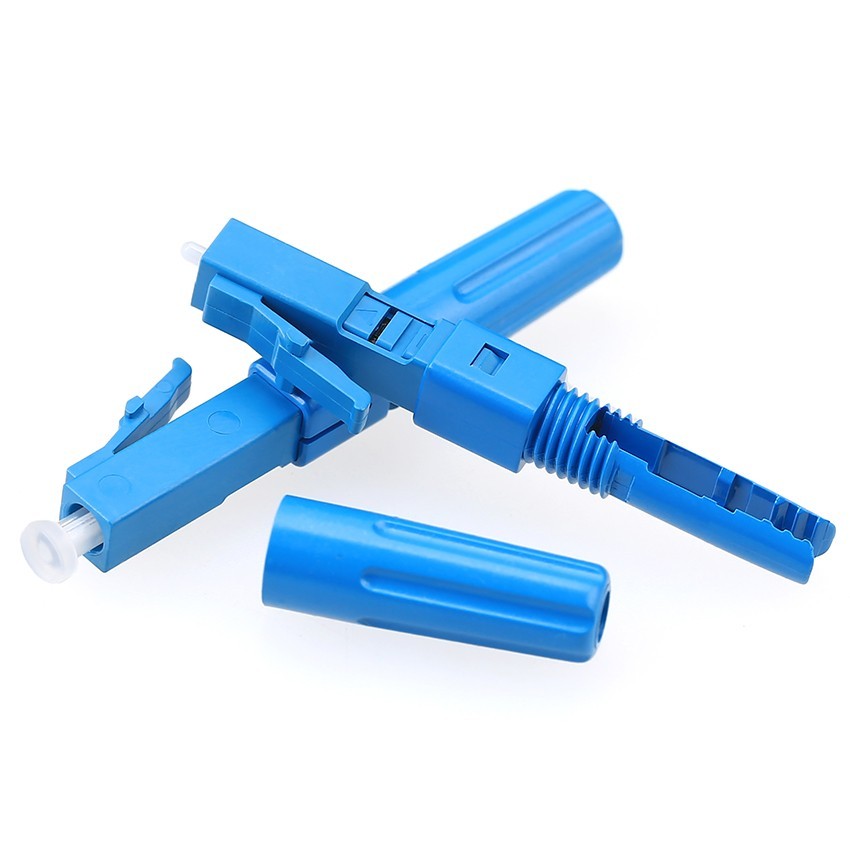

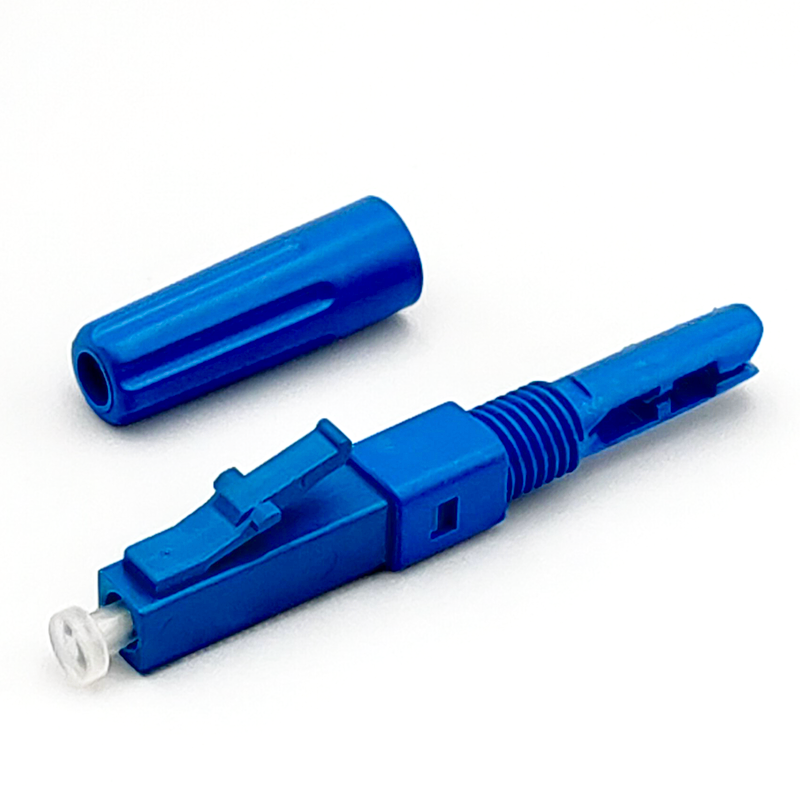

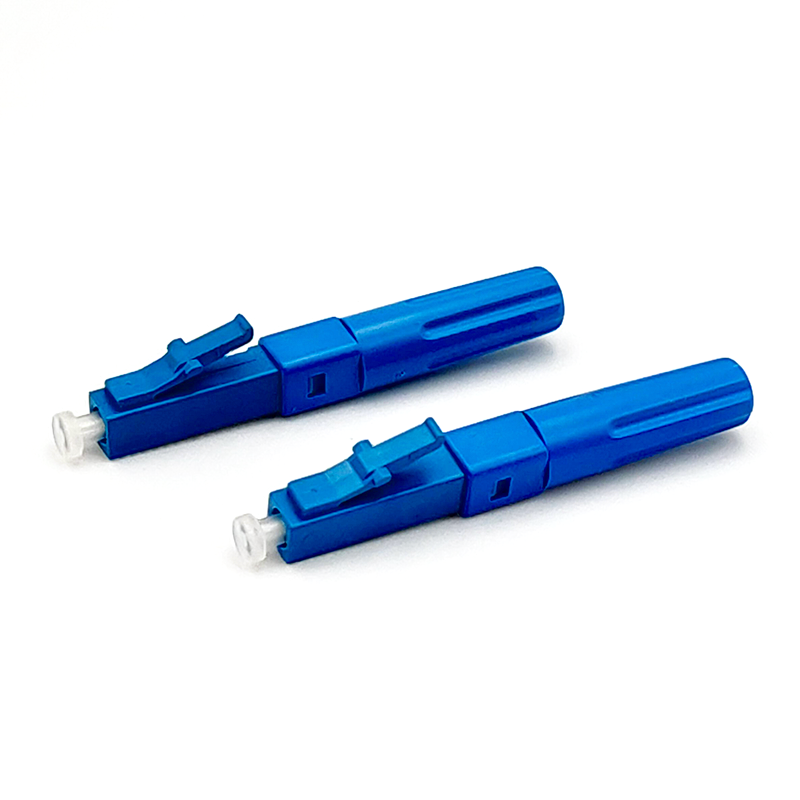

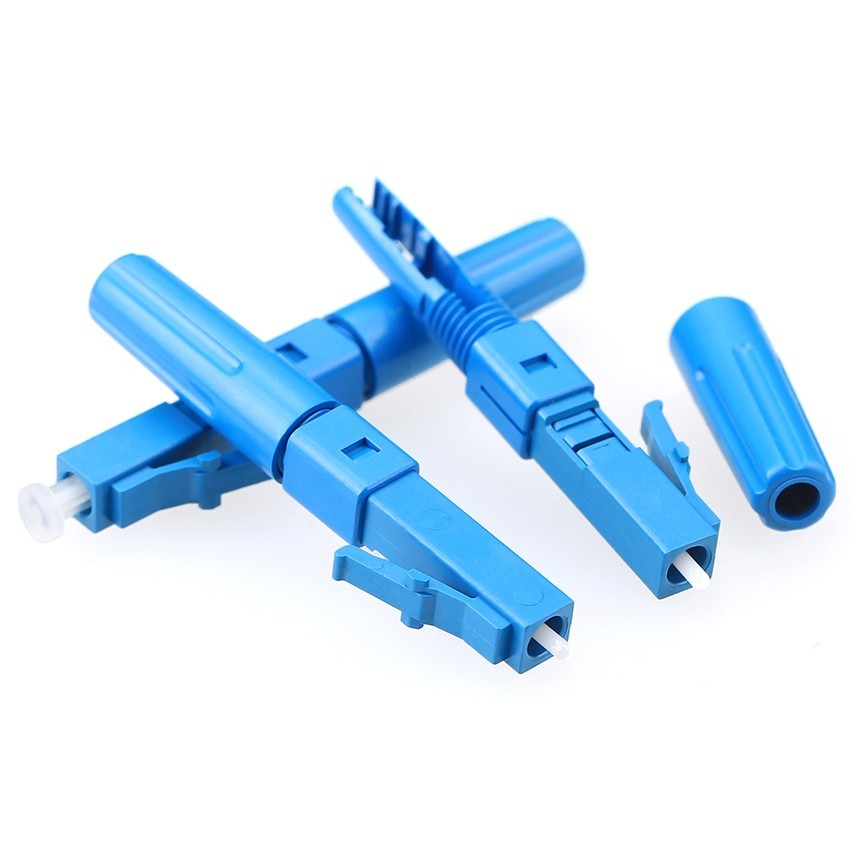

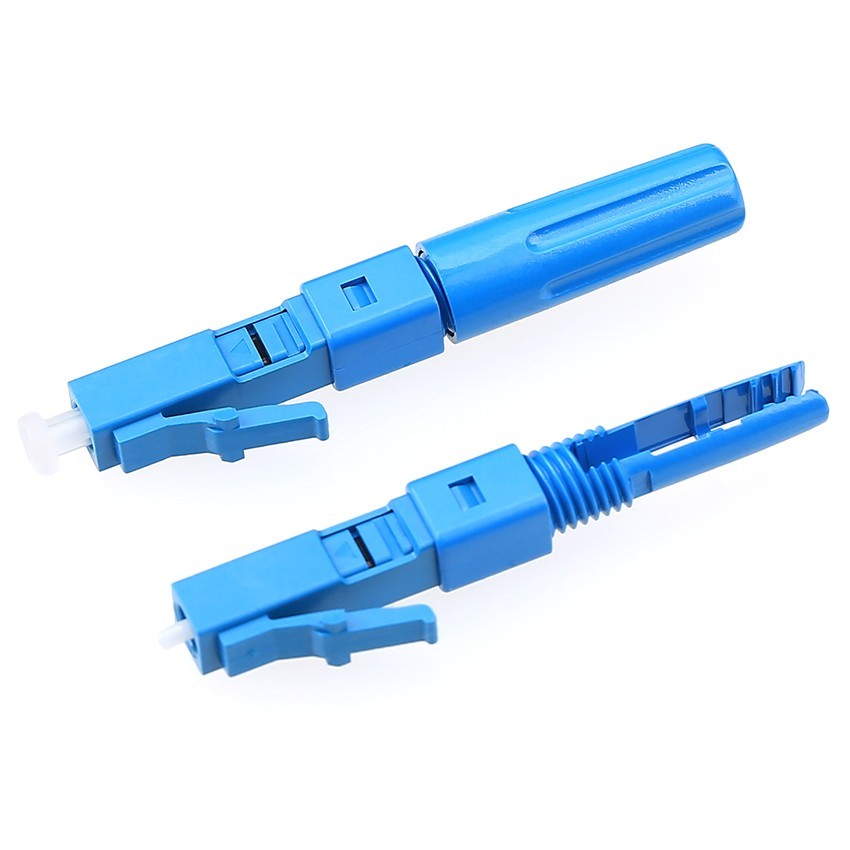

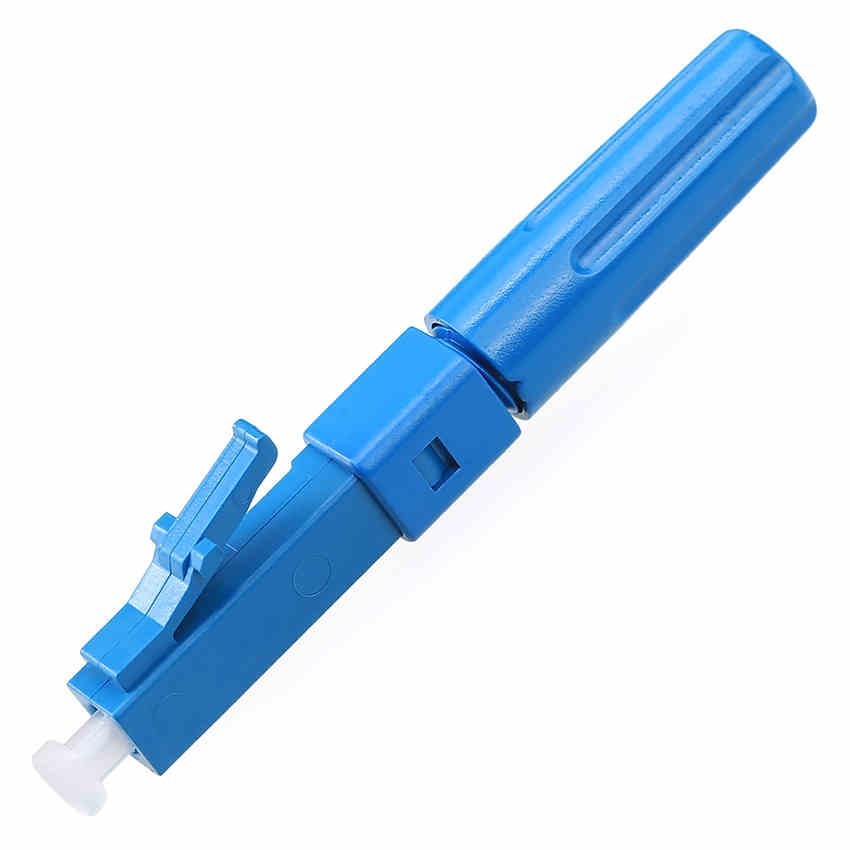

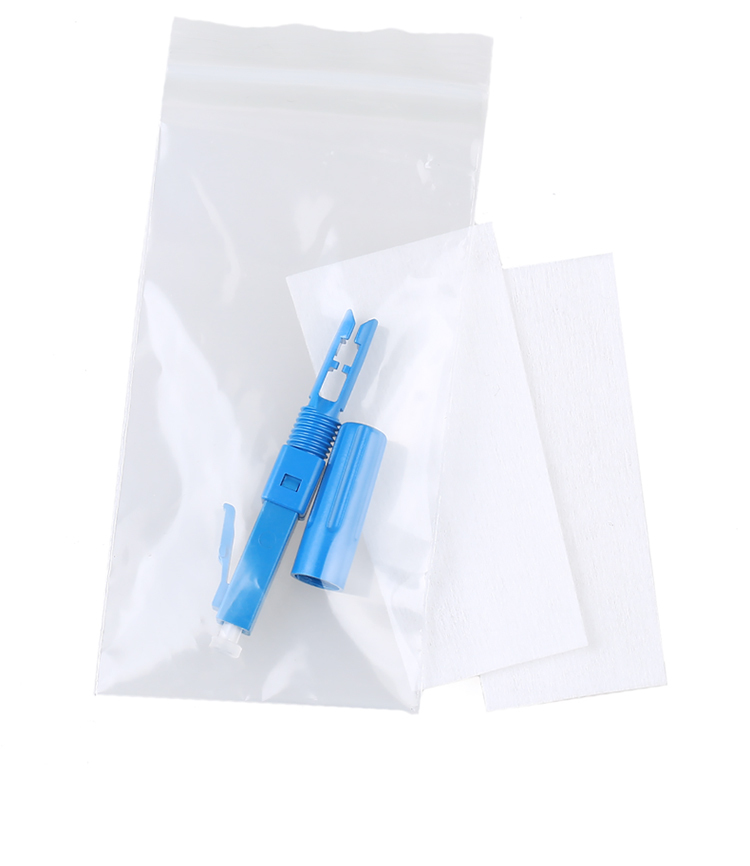

ELC925T-UPC LC/UPC Fast Connector for 2.0x3.0mm 1.6x2.0mm Drop Cable 3.0mm 2.0mm Indoor Cable 0.9mm Invisible Cable Fiber Optic Field Assembly Connector

Item

Parameter

Cable Scope

2.0x3.0mm 1.6x2.0mm Drop Cable
3.0mm 2.0mm Indoor Cable
0.9mm Invisible Cable

Fiber Diameter

125μm ( 652 & 657 )

Coating Diameter

900μm

Mode

SM

Operation Time

about 4min(exclude fiber presetting)

Insertion Loss

≤ 0.3 dB(1310nm & 1550nm), Max ≤ 0.5 dB

Return Loss

≥50dB for UPC

Success Rate

>98%

Reusable Times

≥5  times

Tighten Strength of Bare Fiber

>3N

Tensile Strength

>30 N/2min

Temperature

-40~+85℃

On-line Tensile Strength Test (20 N)

IL ≤ 0.3dB

Mechanical Durability(500 times)

IL ≤ 0.3dB

Drop Test(4m concrete floor, once each direction, three times total)

IL ≤ 0.3dB

Connector Length

40mm
