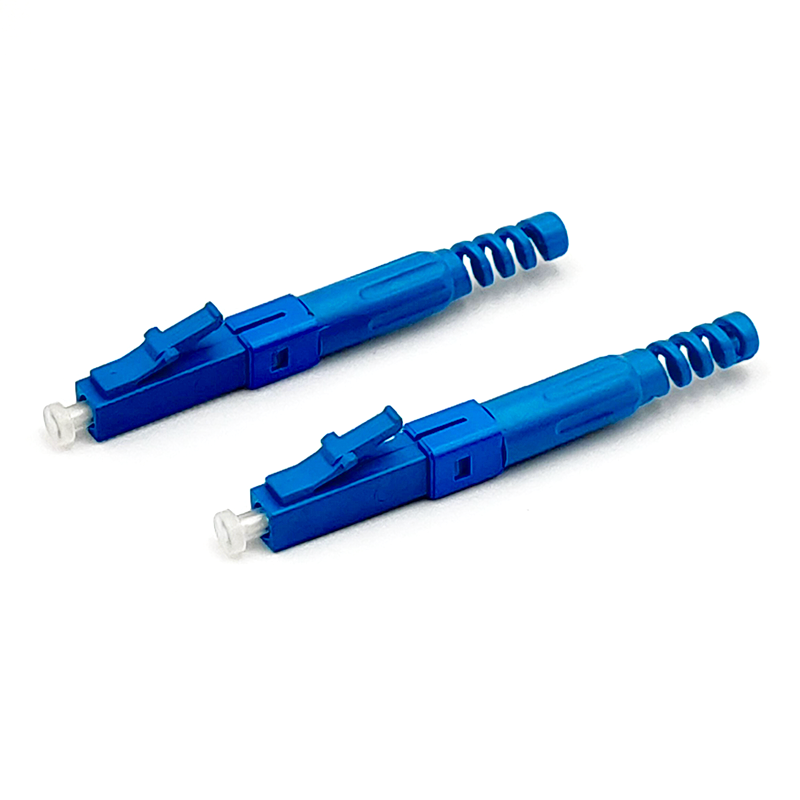

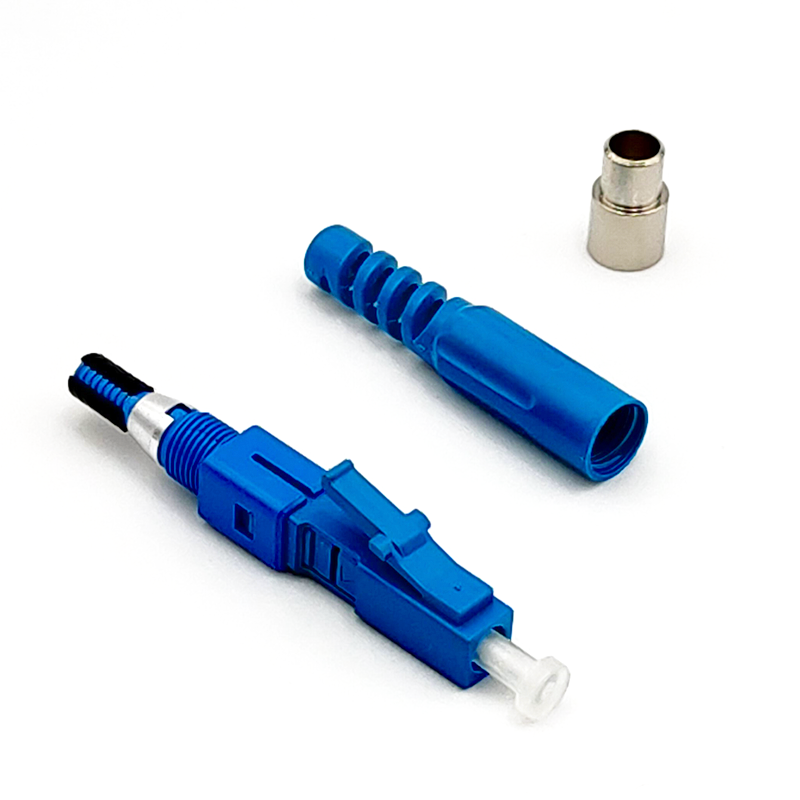

ELC920H-UPC LC/UPC Fast Connector for 3.0mm 2.0mm and 0.9mm Indoor Cable Fiber Optic Field Assembly Connector
Features
- Fiber embedded, polishing in factory;
- Matching gel inside;
- Applicable for different situation;
- Meet various assembly operating habits；
- Screw type,total length:53.3mm, including soft tail
- Applied to Ø2.0 and Ø3.0 indoor cable, 0.9 invisible cable;
- The diameter of fiber coating:900 μm;
- Tensile strength:≥50N/2min
|
Specifications
|
Item
|
Parameter
|
|
Cable Scope
|
3.0 mm & 2.0 mm & 0.9mm Cable
|
|
Fiber Diameter
|
125μm ( 652 & 657 )
|
|
Coating Diameter
|
900μm
|
|
Mode
|
SM
|
|
Operation Time
|
about 1min (exclude fiber presetting)
|
|
Insertion Loss
|
≤ 0.3 dB(1310nm & 1550nm), Max ≤ 0.5 dB
|
|
Return Loss
|
≥50dB for UPC
|
|
Success Rate
|
>98%
|
|
Reusable Times
|
≥5 times
|
|
Tighten Strength of Bare Fiber
|
>3N
|
|
Tensile Strength
|
>50N/2min
|
|
Temperature
|
-40~+85℃
|
|
On-line Tensile Strength Test (20 N)
|
IL ≤ 0.3dB
|
|
Mechanical Durability(500 times)
|
IL ≤ 0.3dB
|
|
Drop Test(4m concrete floor, once each direction, three times total)
|
IL ≤ 0.3dB
|
|
