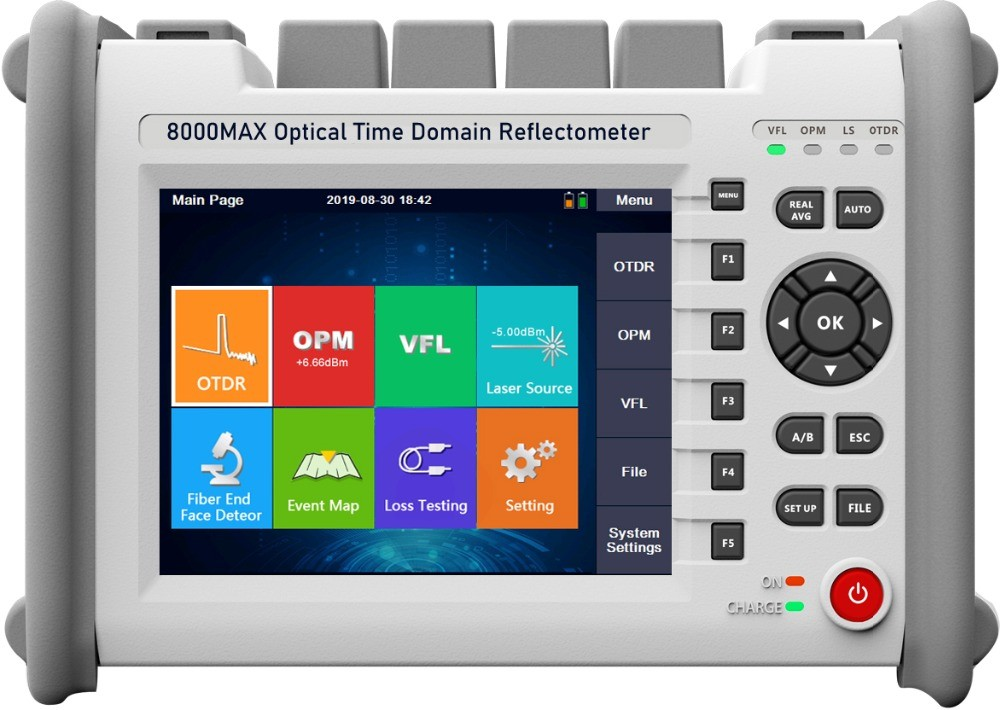

8000MAX OTDR Reflectometer with OPM OLS VFL
539 Sold
$666.00
$696.00
1/1
| Model# | Testing Wavelength | Dynamic Range | Event/ Attenuation Dead Zone |
| 8000MAX-S1 | 1310/1550nm | 32/30dB | 0.8/4 |
| 8000MAX-S2 | 1310/1550nm | 35/33dB | 0.8/4m |
| 8000MAX-T2 | 1310/1550/1625nm | 35/33/32dB | 0.8/4m |
| 8000MAX-T3 | 1310/1550/1650nm | 35/33/32dB | 0.8/4m |
| 8000MAX-M1 | 850/1300nm | 20/26dB | 1.2/5m |
| 8000MAX-Q1 | 1310/1550/850/1300nm | 28/26/20/26dB | 0.8/4m, 1.2m/5m |
Note: please download catalogue to see all optional models. We also can customize OTDR for you per your request.
BUY ONE, GET ALL
- OTDR (Auto)
- OTDR (Manual | Average)
- OTDR (Real Time)
- Event Map
- Optical Power Meter (OPM)

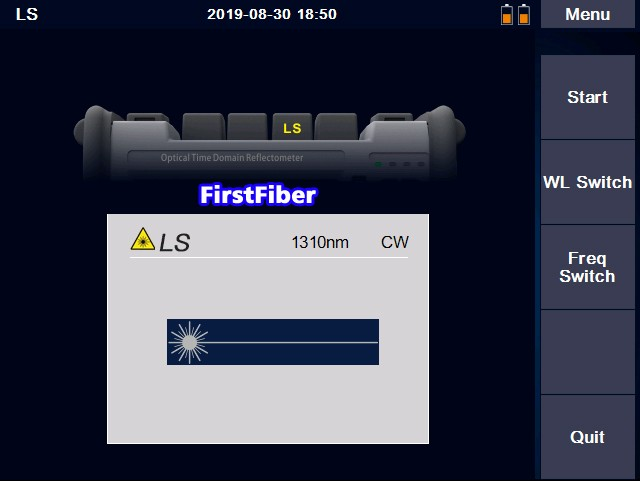

- Optical Light Source (OLS)
- Loss Testing

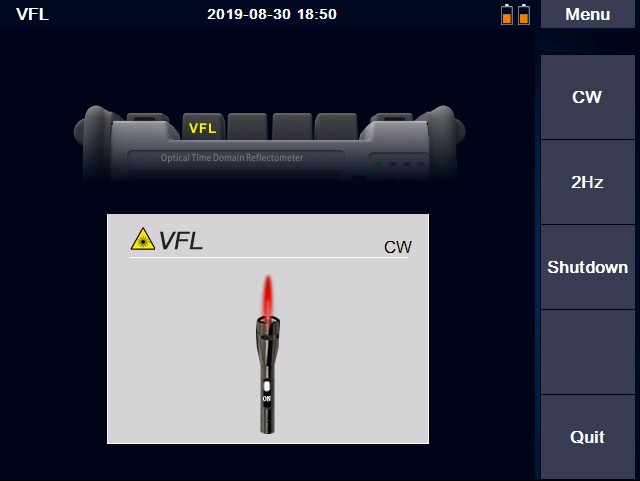

- Visual Fault Locator (VFL)
- Fiber End Face Detector

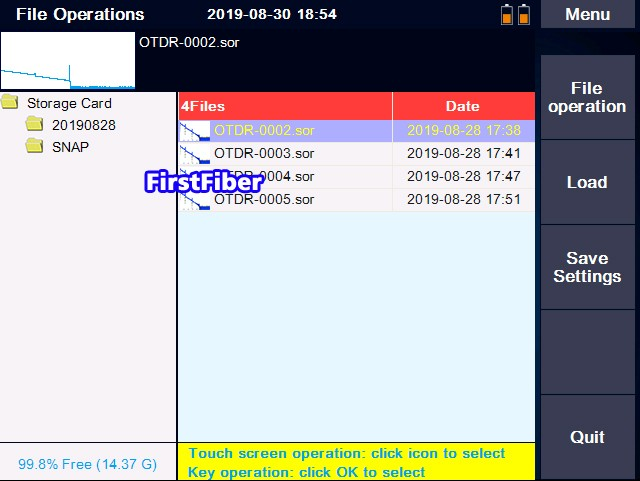

- Result Format Sor & PDF
New Features
- Launch Cable & Receive Cable Applicable, and Deduction Allowed from Trace
- Two Wavelengths to Process Testing Tasks Simultaneously
- Service Light Detecting and Start Protection
The Menu Language
- English
- Spanish
- Russian
- Korean
- French
- Portugal
- Italian
- Hebrew
The Kit Includes
- OTDR
- FC/SC Connector
- User Manual,
- Touch Pen

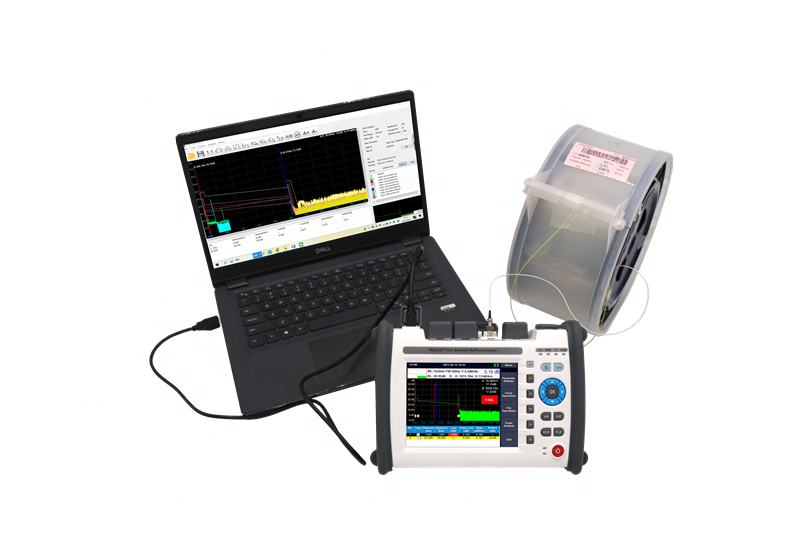

- OTDRviewer Software
- Power Charging Adapter,
- Carrying Bag
- Certificate of Calibrate
8000MAX OTDR Video Demo
8000MAX OTDR Splitter Testing
8000MAX OTDR Launch Cable Setting
